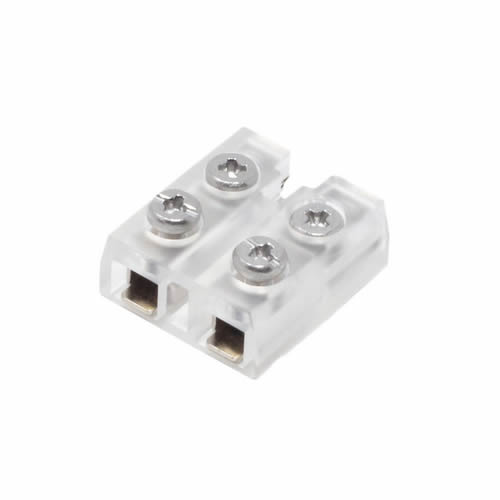

Diode LED DI-TB12-CONN-TTW-1 Tape Light Tape to Wire 12mm Terminal Block Connector
Diode LED DI-TB12-CONN-TTW-1 Tape Light Tape to Wire 12mm Terminal Block Connector
SKU: DI-TB12-CONN-TTW-1
UPC: 848333022821
Couldn't load pickup availability
![Diode LED DI-TB12-CONN-TTW-1 Tape Light Tape to Wire 12mm Terminal Block Connector](http://gladiatorlighting.com/cdn/shop/files/tb12-ttw_2__66688.jpg?v=1717669411&width=1445)
- Description
Diode LED DI-TB12-CONN-TTW-1 Tape Light Tape to Wire 12mm Terminal Block Connector
Create easy, fast, and secure tape light connections with the 12mm Tape Light Terminal Block Connector. It features screw down connections and a small form factor for minimal presence in tight spaces.
Specifications:
- Works with 12mm wide tape light only (Wire not included)
- Voltage: 12-24 VDC
- Max. Amperage: 12V - 5A / 24V - 4A
- Wire Gauge: 14 AWG - 20 AWG
- Dimensions: Length = 0.62", Width = 0.59", Height = 0.26"
- Environment: Indoor
- Ambient Temperature: -4° - 122°F (-20° - 50°C)
- Warranty: 5 Year
- Spec Sheet
