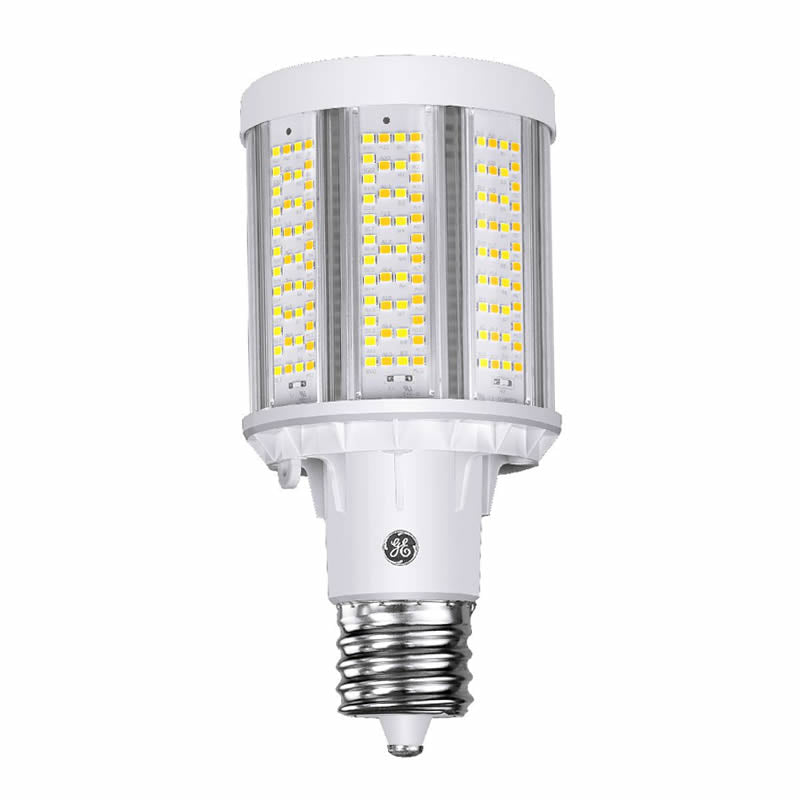

GE 93314601 LED/LC/ED23.5P/7SC 32/39/46W LED Corn Cob Lamp 30K/40K/50K EX39 Base 120-277V

Identification & Use

This LED corn cob lamp is a contractor grade retrofit light source designed for replacement of HID lamps in commercial lighting fixtures operating on 120-277V circuits. The lamp installs into mogul base sockets and provides selectable wattage and selectable color temperature output for facility maintenance standardization across multiple areas. Typical applications include wall packs, shoebox fixtures, post top luminaires, canopy fixtures, and general exterior commercial lighting systems. The lamp operates on line voltage and is intended for ballast bypass installation to restore lighting performance during maintenance or energy retrofit upgrades.

Fit & Electrical Compatibility

• Voltage: 120-277V line voltage
• Base Type: EX39 mogul base
• Ballast: Ballast bypass required
• Not Compatible: Magnetic or electronic HID ballast operation
• Fixture Type: Enclosed or open rated luminaires per fixture clearance
• Wiring: Direct line voltage to lamp socket
• Controls: Compatible with standard switching and contactor control
• Not Compatible: Phase cut dimmers

Technical Performance Specifications

• Selectable Wattage: 32W / 39W / 46W
• Color Temperature: 3000K / 4000K / 5000K
• Input Voltage: 120-277 VAC
• Frequency: 50/60 Hz
• Lamp Shape: ED23.5
• Base: EX39 mogul screw
• Light Source: Integrated LED array
• Driver: Internal LED driver
• Installation: Ballast bypass retrofit
• Operating Environment: Commercial rated
• Control Type: Non-dimming

Fixture / Application Type

Designed for retrofit into shoebox fixtures, post top fixtures, canopy luminaires, and wall pack fixtures originally using high intensity discharge lamps with mogul base sockets.

System Matching / Replacement Reference

Replaces metal halide and high pressure sodium HID lamps in commercial lighting systems requiring direct line voltage LED retrofit operation.

Installation Requirements

Requires ballast removal and direct wiring of line voltage to the lamp socket. Installer must verify voltage range and fixture thermal clearance before energizing.

Final Application Guidance

Provides consistent retrofit lighting performance for commercial fixtures. Confirm socket type and bypass wiring to ensure proper operation and maintenance reliability.
