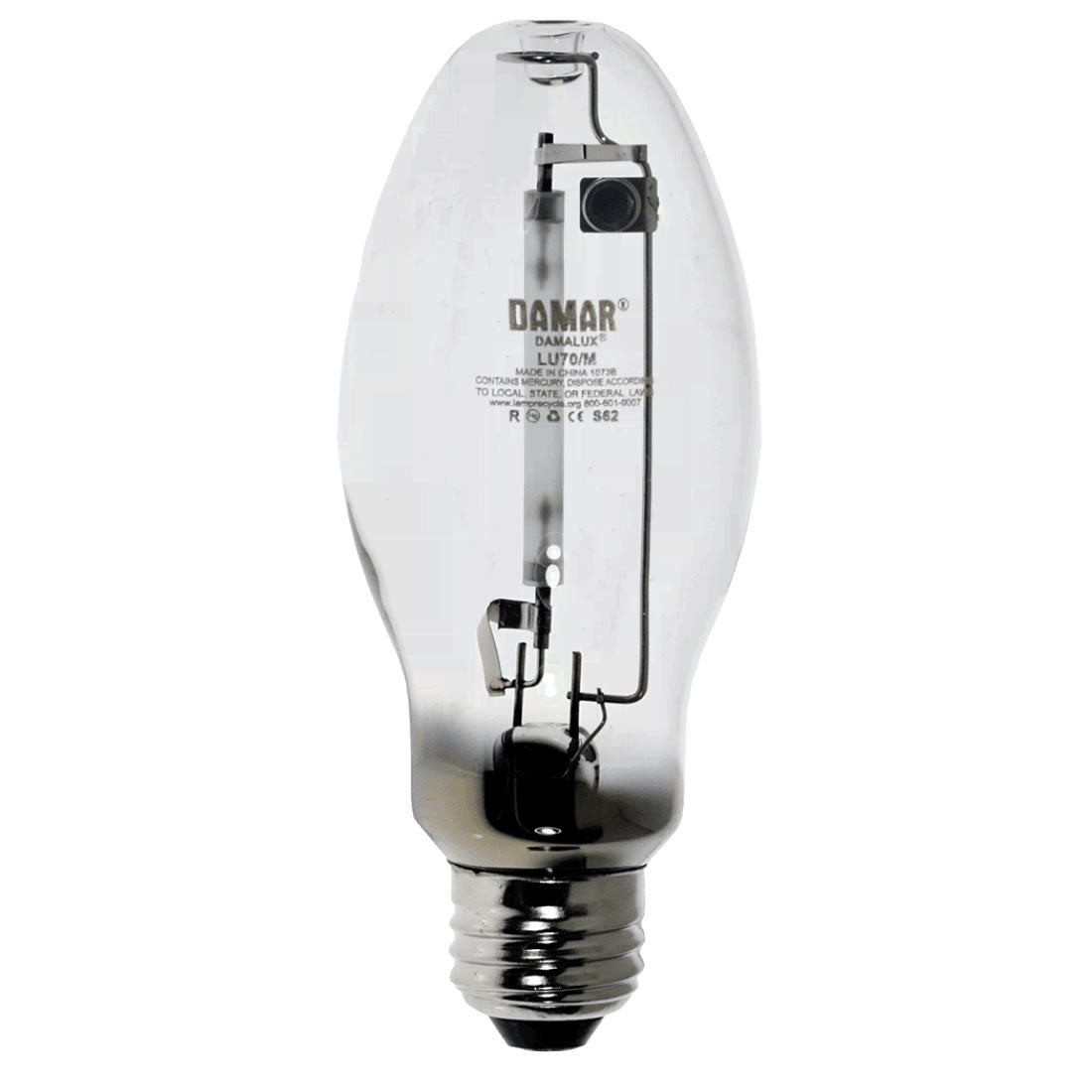

DAMAR 01073B LU70/M 70W High Pressure Sodium ED17 2000K E26 Base

Identification & Application

DAMAR 01073B LU70/M 70W High Pressure Sodium ED17 2000K E26 Base

The DAMAR 01073B LU70/M 70W High Pressure Sodium ED17 2000K E26 Base is a Damar high pressure sodium hid lamp with verified performance specifications including Wattage: 70W • ANSI: S62 Initial lumens: 6300 • Color temperature: 2000K • CRI: 22. It is intended for compatible hid luminaires requiring the exact wattage, ansi code, base, operating position, and open- or enclosed-fixture rating specified for this lamp.

Construction and operation are defined by the exact manufacturer configuration for this SKU. Verified details include mounting or base configuration of E26; Lamp shape: ED17 • Base: E26 • Finish/color: Clear • Features: Open Rated • Enclosed Rated • Additional manufacturer information: ANSI BALLAST TYPE S62 This lamp passes the Toxicity Characteristic Leaching Procedure(TCLP) as set forth in ANSI standard C78.LL 1256-2003; product dimensions of Maximum overall length: 6.2 in. • Diameter: 2.16 in.. Install only in equipment designed for the listed wattage, voltage, base, lamp shape, ballast or driver method, operating position, enclosure rating, mounting method, and control requirements.

For specification, purchasing, and maintenance planning, the manufacturer documentation confirms Rated life: 24000 hours; case quantity: 12. All products should be installed and used in accordance with applicable electrical codes and the requirements of the compatible fixture or equipment.

Technical Performance Specifications
