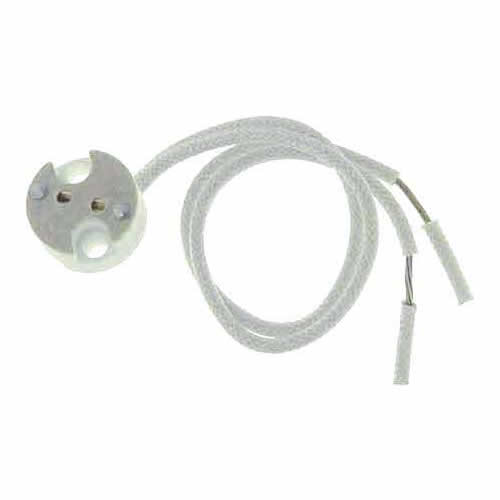

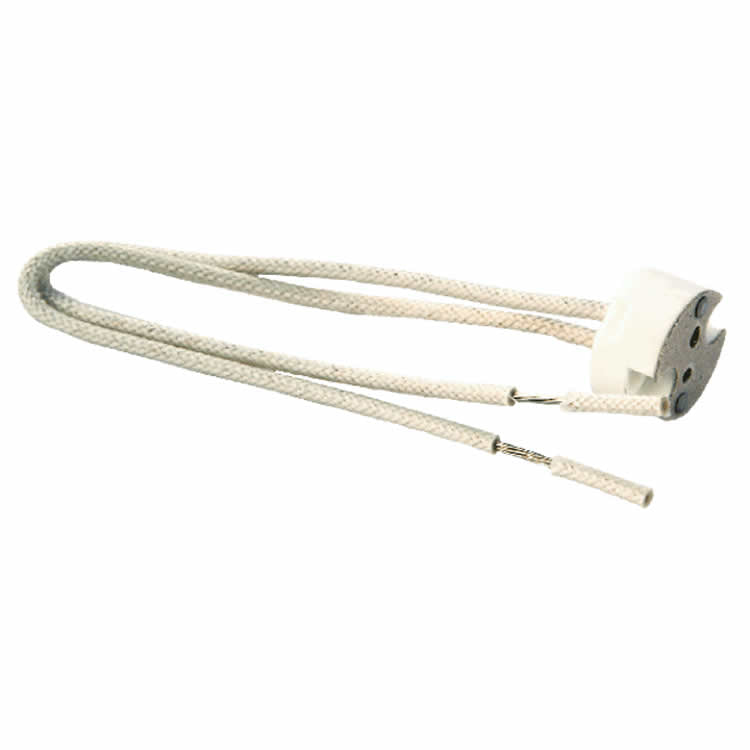

DAMAR 03488B GU4, GY4, GZ4, G5, G5.3, GU5.3, GX5.3, GY5.3, G6.35, GX6.35, GY6.35, GZ6.35 base lamp holder/socket with 6" leads

Identification & Application

DAMAR 03488B GU4, GY4, GZ4, G5, G5.3, GU5.3, GX5.3, GY5.3, G6.35, GX6.35, GY6.35, GZ6.35 base lamp holder/socket with 6" leads

The DAMAR 03488B GU4, GY4, GZ4, G5, G5.3, GU5.3, GX5.3, GY5.3, G6.35, GX6.35, GY6.35, GZ6.35 base lamp holder/socket with 6" leads is a Damar lighting product with verified performance specifications including Wattage: 750W • Voltage: 250V. It is intended for compatible maintenance, retrofit, replacement, and new-installation lighting applications requiring this exact manufacturer item number and electrical configuration.

Construction and operation are defined by the exact manufacturer configuration for this SKU. Verified details include mounting or base configuration of G5; Base: G5 • Finish/color: White • Additional manufacturer information: 6 INCH HIGH TEMPERATURE INSULATED WIRE LEADS PORCELAIN CONSTRUCTION SPRING LOADED CONTACTS ACCEPTS 1.5mm MAX PIN DIAMETER ACCEPTS THE FOLLOWING BIPIN BASES: 6.5 inch leads G4 IEC 7004-72-3 GU4 IEC 7004-108-2 GY4 IEC 7004-72A-1 GZ4 IEC 7004-67-3 G5 IEC 7004-52-5 G5.3 IEC 7004-52-5 G5.3-4.8 IEC 7004-126-1 GU5.3 IEC 7004-109-2 GX5.3 IEC 7004-73A-2 GY5.3 IEC 7004-73B-2 G6.35 IEC 7004-59-6 GX6.35 IEC 7004-59-6 GY6.35 IEC 7004-59-6 GZ6.35 IEC 7004-59A-3; product dimensions of Maximum overall length: 5.2 in. • Diameter: 0.68 in.. Install only in equipment designed for the listed wattage, voltage, base, lamp shape, ballast or driver method, operating position, enclosure rating, mounting method, and control requirements.

For specification, purchasing, and maintenance planning, the manufacturer documentation confirms inner/package quantity: 50; case quantity: 50. All products should be installed and used in accordance with applicable electrical codes and the requirements of the compatible fixture or equipment.

Technical Performance Specifications
