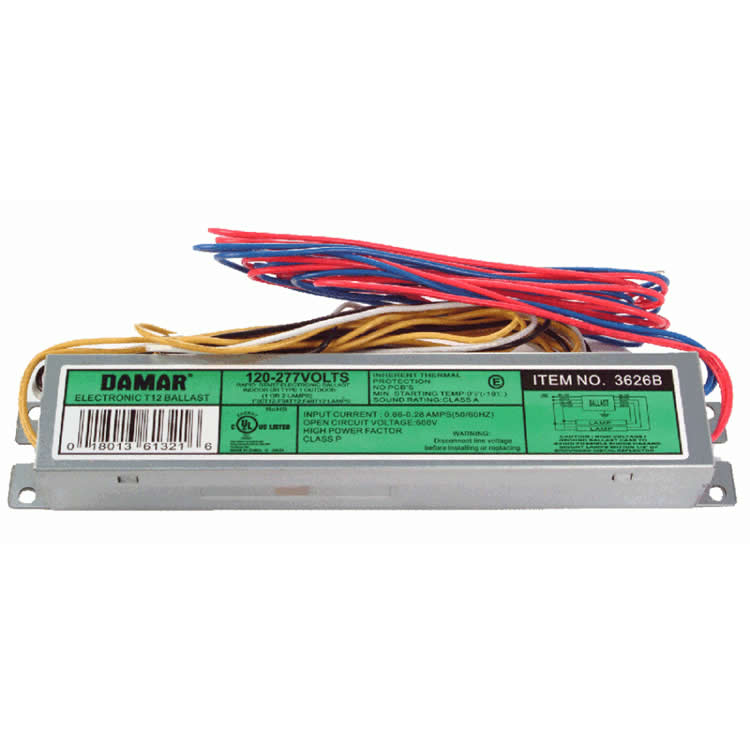

DAMAR 03626B EL240-120/277HF 1-2 Lamp F30T12/F34T12/F40T12 Fluorescent Ballast 120-277V

Identification & Application

DAMAR 03626B EL240-120/277HF 1-2 Lamp F30T12/F34T12/F40T12 Fluorescent Ballast 120-277V

The DAMAR 03626B EL240-120/277HF 1-2 Lamp F30T12/F34T12/F40T12 Fluorescent Ballast 120-277V is a Damar lighting ballast with verified performance specifications including Voltage: 120-277V. It is intended for replacement and maintenance of compatible luminaires using the exact listed lamp type, wattage, voltage, starting method, and circuit configuration.

Construction and operation are defined by the exact manufacturer configuration for this SKU. Verified details include mounting or base configuration of Wire Leads Wire Type: 18AWG - MBTL: 18 ft Solid; Base: Wire Leads Wire Type: 18AWG - MBTL: 18 ft Solid • Features: Rapid Start • Additional manufacturer information: G13 MEDIUM BI-PIN OPERATES 1-2 F30,F34,F40T12RS,F40T10RS INHERENT THERMAL PROTECTION NO PCBS SOUND RATING CLASS A; product dimensions of Maximum overall length: 10.25 in. • Height: 1.25 in. • Width: 1.75 in. • Length: 9.47 in.. Install only in equipment designed for the listed wattage, voltage, base, lamp shape, ballast or driver method, operating position, enclosure rating, mounting method, and control requirements.

For specification, purchasing, and maintenance planning, the manufacturer documentation confirms Rated life: Date Coded; inner/package quantity: 1; case quantity: 10. All products should be installed and used in accordance with applicable electrical codes and the requirements of the compatible fixture or equipment.

Technical Performance Specifications
