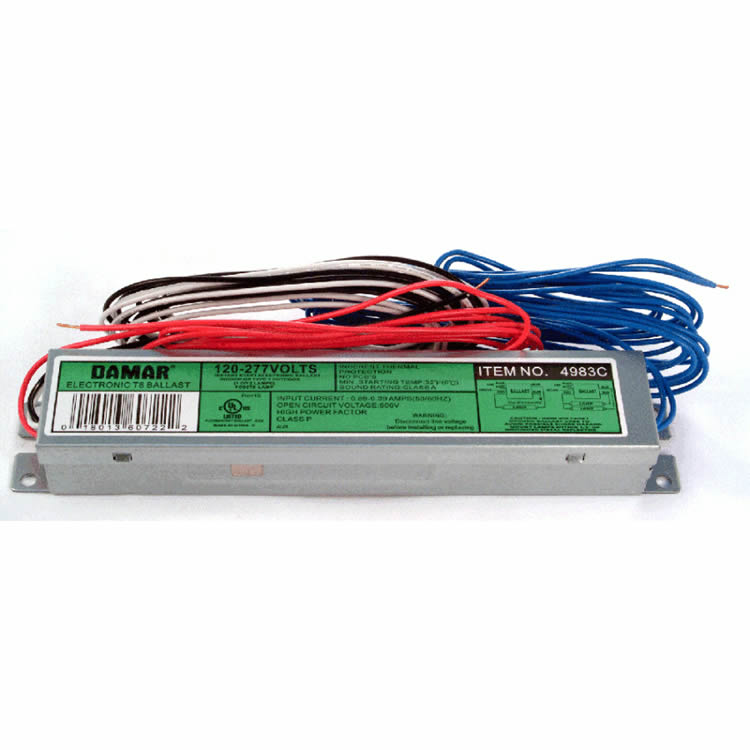

DAMAR 04983C EL259-120/277HF 1-2 Lamp F40T8/F58T8/F70T8/F72T8/F96T8 Fluorescent Ballast 120-277V

Identification & Application

DAMAR 04983C EL259-120/277HF 1-2 Lamp F40T8/F58T8/F70T8/F72T8/F96T8 Fluorescent Ballast 120-277V

The DAMAR 04983C EL259-120/277HF 1-2 Lamp F40T8/F58T8/F70T8/F72T8/F96T8 Fluorescent Ballast 120-277V is a Damar lighting ballast with verified performance specifications including Voltage: 120-277V. It is intended for replacement and maintenance of compatible luminaires using the exact listed lamp type, wattage, voltage, starting method, and circuit configuration.

Construction and operation are defined by the exact manufacturer configuration for this SKU. Verified details include Finish/color: Aluminum 04983C Al i D EL259 120/277HF 120V 277V Cross Reference Prior Version Prior Version D 259TP277I INST START (D) || 277 VOLTS Case • Features: UL Listed • Additional manufacturer information: UL LISTED OPERATES 1 OR 2 F40T8, F58T8, F70T8, F72T8, F96T8 LAMPS .99 POWER FACTOR MAXIMUM THD 10 Wire Leads: All Leads 2438mm Start Temp: 32; product dimensions of Maximum overall length: 10.25 in.. Install only in equipment designed for the listed wattage, voltage, base, lamp shape, ballast or driver method, operating position, enclosure rating, mounting method, and control requirements.

For specification, purchasing, and maintenance planning, the manufacturer documentation confirms Rated life: Date Coded MBTL: 18 ft Wire Type: 18AWG - Solid hours; inner/package quantity: 1; case quantity: 12. All products should be installed and used in accordance with applicable electrical codes and the requirements of the compatible fixture or equipment.

Technical Performance Specifications
