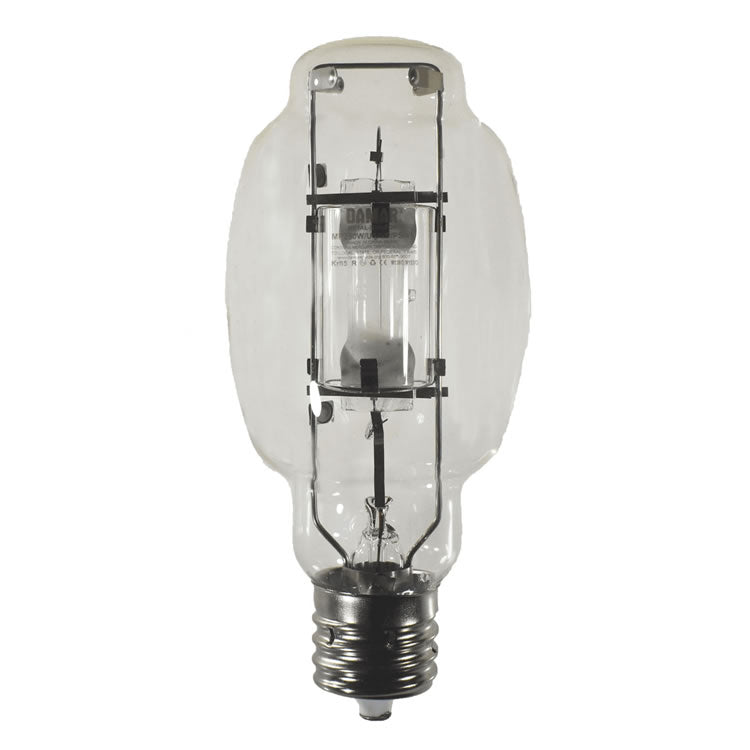

DAMAR 25223A MP100W/U/UVP/BT28/PS/4K 100W Metal Halide BT28 Open Rated 4000K EX39 Base

Identification & Application

DAMAR 25223A MP100W/U/UVP/BT28/PS/4K 100W Metal Halide BT28 Open Rated 4000K EX39 Base

The DAMAR 25223A MP100W/U/UVP/BT28/PS/4K 100W Metal Halide BT28 Open Rated 4000K EX39 Base is a Damar metal halide hid lamp with verified performance specifications including Wattage: 100W • ANSI: M90/O Color temperature: 4000K • CRI: 65. It is intended for compatible hid luminaires requiring the exact wattage, ansi code, base, operating position, and open- or enclosed-fixture rating specified for this lamp.

Construction and operation are defined by the exact manufacturer configuration for this SKU. Verified details include mounting or base configuration of EX39; Lamp shape: BT28 • Base: EX39 • Finish/color: Clear • Features: Open Rated • Additional manufacturer information: OPEN RATED Start Method: M90; product dimensions of Maximum overall length: 9.25 in. • Height: 3.5 in.. Install only in equipment designed for the listed wattage, voltage, base, lamp shape, ballast or driver method, operating position, enclosure rating, mounting method, and control requirements.

For specification, purchasing, and maintenance planning, the manufacturer documentation confirms Rated life: 9000 hours; inner/package quantity: 1; case quantity: 12. All products should be installed and used in accordance with applicable electrical codes and the requirements of the compatible fixture or equipment.

Technical Performance Specifications
