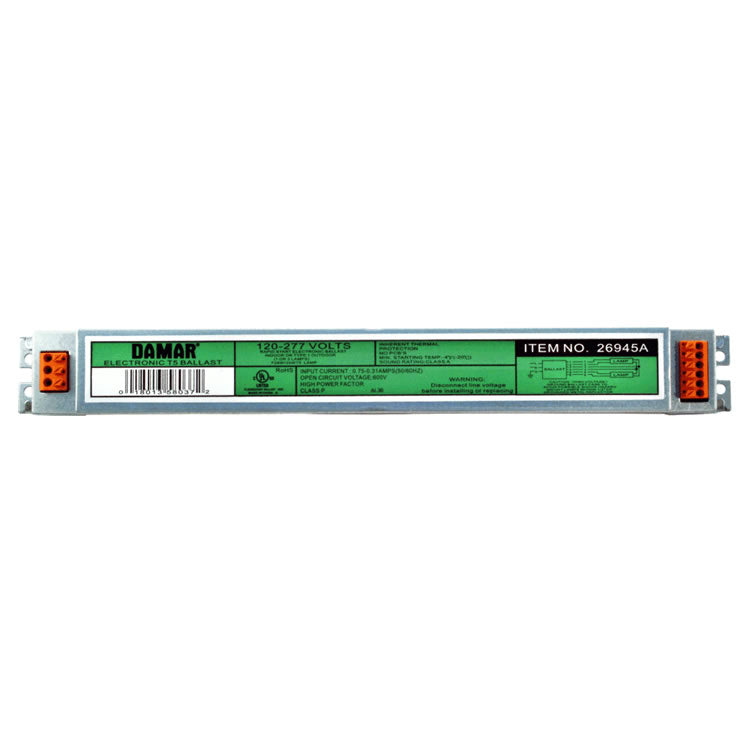

DAMAR 26945A EL228-235T5-120/277HF 1-2 Lamp F28T5/F35T5 Fluorescent Ballast 120-277V

Identification & Application

DAMAR 26945A EL228-235T5-120/277HF 1-2 Lamp F28T5/F35T5 Fluorescent Ballast 120-277V

The DAMAR 26945A EL228-235T5-120/277HF 1-2 Lamp F28T5/F35T5 Fluorescent Ballast 120-277V is a Damar lighting ballast with verified performance specifications including Voltage: 120-277V • Dimming: Dimmable. It is intended for replacement and maintenance of compatible luminaires using the exact listed lamp type, wattage, voltage, starting method, and circuit configuration.

Construction and operation are defined by the exact manufacturer configuration for this SKU. Verified details include Features: Dimmable • UL Listed • Additional manufacturer information: UL LISTED OPERATES 1 OR 2 F28T5 F35T5 HIGH POWER FACTOR Wire Leads: Push-in Terminals Start Temp: -4 Start Method: Series; product dimensions of Maximum overall length: 13.88 in. • Height: 1.1 in. • Width: 1.36 in. • Length: 11.5 in.. Install only in equipment designed for the listed wattage, voltage, base, lamp shape, ballast or driver method, operating position, enclosure rating, mounting method, and control requirements.

For specification, purchasing, and maintenance planning, the manufacturer documentation confirms case quantity: 20. All products should be installed and used in accordance with applicable electrical codes and the requirements of the compatible fixture or equipment.

Technical Performance Specifications
