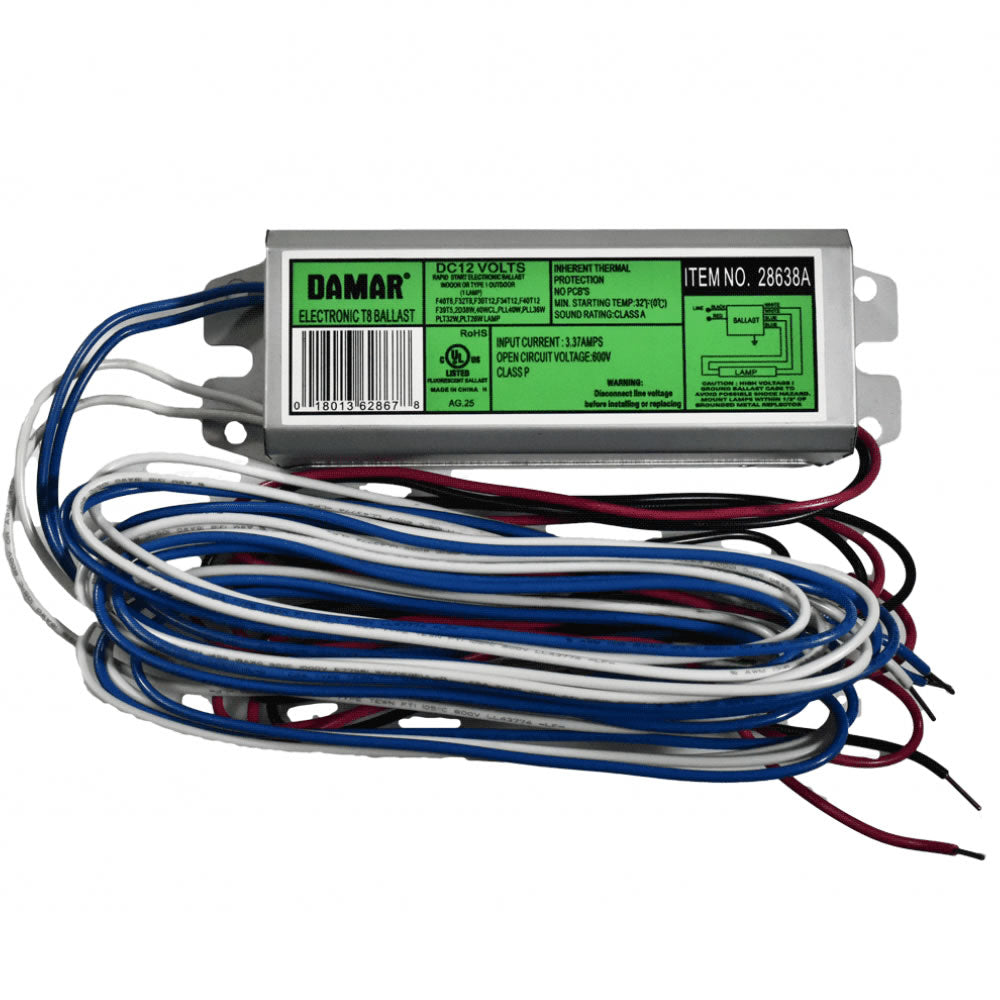

DAMAR 28638A EL132-40T8-12HF-12V 1-Lamp F32T8/F40T8/F34T12/F36LTT/F40LTT/F40T12/F39T5/CF28SQ/CFM26W/CFM32W Fluorescent Ballast 12V

Identification & Application

DAMAR 28638A EL132-40T8-12HF-12V 1-Lamp F32T8/F40T8/F34T12/F36LTT/F40LTT/F40T12/F39T5/CF28SQ/CFM26W/CFM32W Fluorescent Ballast 12V

The DAMAR 28638A EL132-40T8-12HF-12V 1-Lamp F32T8/F40T8/F34T12/F36LTT/F40LTT/F40T12/F39T5/CF28SQ/CFM26W/CFM32W Fluorescent Ballast 12V is a Damar lighting ballast with verified performance specifications including Wattage: 32W • Voltage: 12V. It is intended for replacement and maintenance of compatible luminaires using the exact listed lamp type, wattage, voltage, starting method, and circuit configuration.

Construction and operation are defined by the exact manufacturer configuration for this SKU. Verified details include Lamp shape: T8 Wire Type: 18AWG - MBTL: 18 ft Solid • Additional manufacturer information: BALLAST FACTOR .71 RUNS (1) F32T8, F40T8, F30T12, F34T12, F36LTT, F40LTT, F40T12, F39T5HO, CF28SQ, CFM26W, CFM32W Wire Leads: All Leads 1524mm Start Temp: 32; product dimensions of Maximum overall length: 7.5 in.. Install only in equipment designed for the listed wattage, voltage, base, lamp shape, ballast or driver method, operating position, enclosure rating, mounting method, and control requirements.

For specification, purchasing, and maintenance planning, the manufacturer documentation confirms inner/package quantity: 1; case quantity: 20. All products should be installed and used in accordance with applicable electrical codes and the requirements of the compatible fixture or equipment.

Technical Performance Specifications
