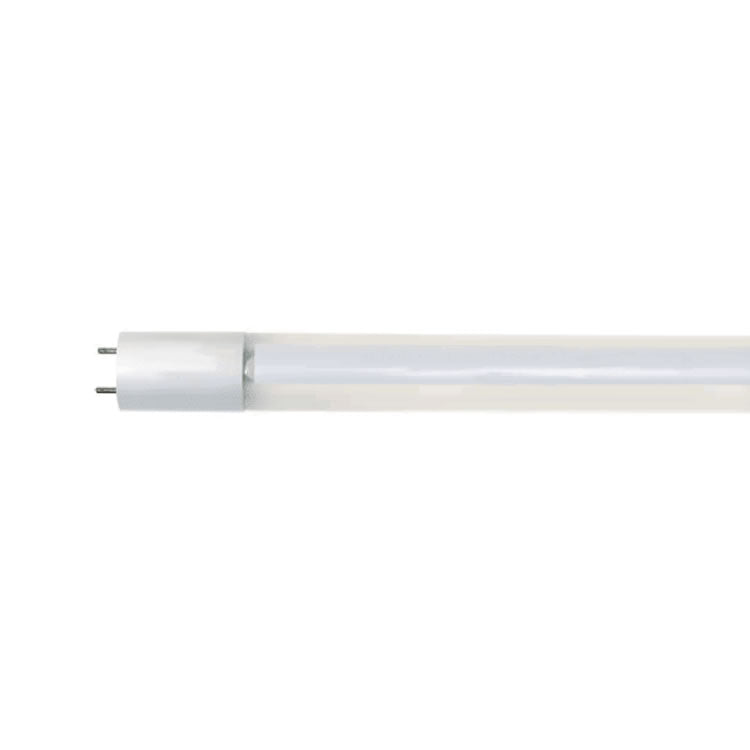

DAMAR 31169M LED18T8/865/4FT/BP 18W 4ft T8 LED Tube 6500K Type B Ballast Bypass Safety Shield Sleeve G13 120-277V

Identification & Application

DAMAR 31169M LED18T8/865/4FT/BP 18W 4ft T8 LED Tube 6500K Type B Ballast Bypass Safety Shield Sleeve G13 120-277V

The DAMAR 31169M LED18T8/865/4FT/BP 18W 4ft T8 LED Tube 6500K Type B Ballast Bypass Safety Shield Sleeve G13 120-277V is a high-performance Damar LED linear replacement lamp designed for Type B ballast bypass installations. Operating on 120-277V, this 18W T8 LED tube produces 2,200 initial lumens of bright 6500K daylight illumination with an 83 CRI and a wide 220° beam angle, making it ideal for warehouses, commercial buildings, industrial facilities, retail environments, offices, and institutional lighting applications.

The lamp features a G13 medium bi-pin base and is engineered for direct-wire ballast bypass operation, eliminating the fluorescent ballast for increased system reliability and lower maintenance costs. Its durable Safety Shield sleeve is enclosed fixture rated and designed to operate in ambient temperatures from -20°F (-4°C) to 104°F (40°C). Measuring 48 inches in overall length with a 1.18-inch diameter, it provides an efficient retrofit solution for compatible T8 fluorescent fixtures.

Designed for dependable long-term performance, the LED18T8/865/4FT/BP is rated for 40,000 hours of service life and is backed by a 3-year manufacturer's warranty. Installation should be performed only according to the manufacturer's ballast bypass wiring instructions and all applicable electrical codes.

Technical Performance Specifications
