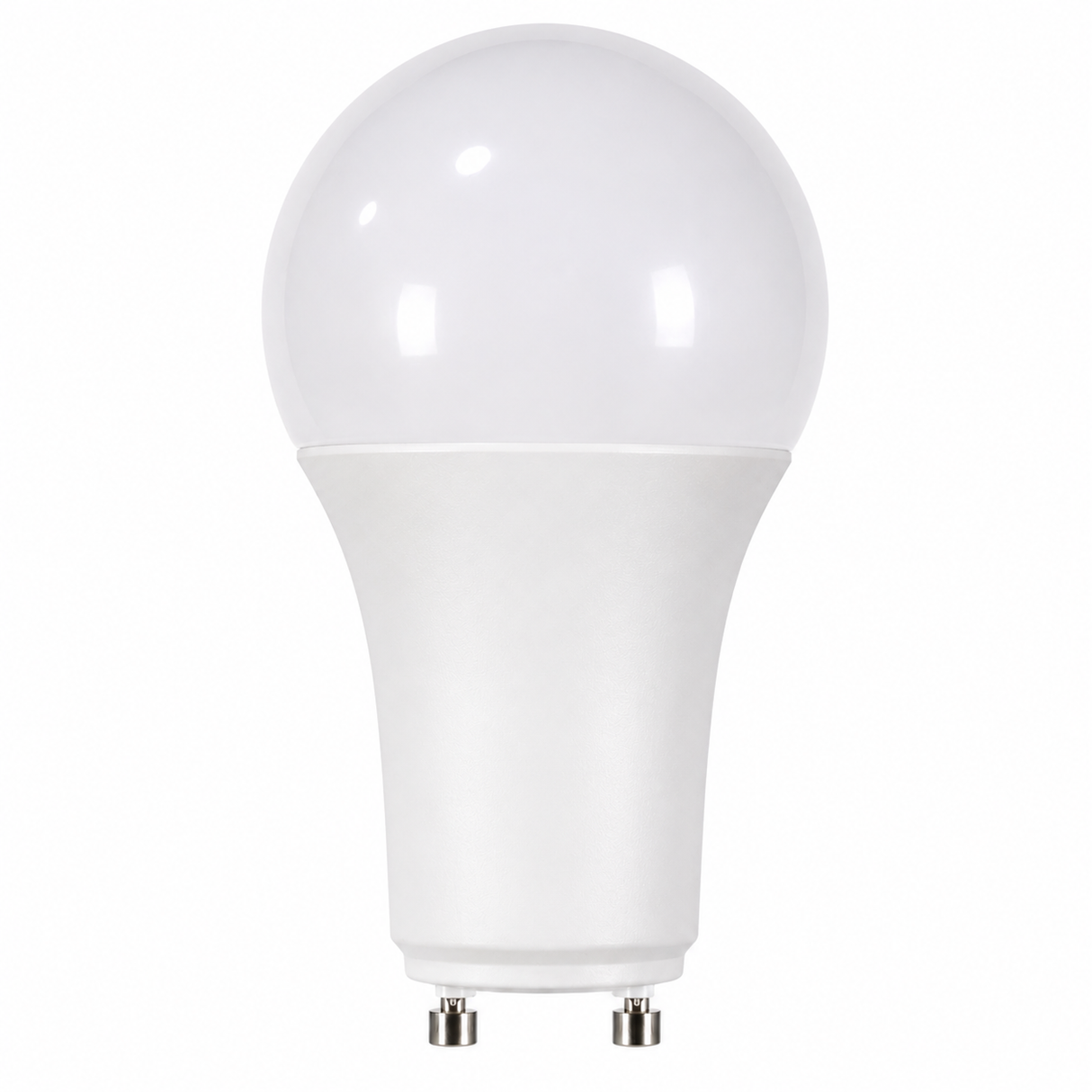

DAMAR 33696B LED9.5A19/5K/D 9.5W A19 LED 5000K GU24 Base 120V

Identification & Application

DAMAR 33696B LED9.5A19/5K/D 9.5W A19 LED 5000K GU24 Base 120V

This A19 LED lamp is designed for general illumination applications in residential, commercial, hospitality, and multi-family environments utilizing GU24 socket configurations. The lamp provides a direct LED replacement solution for GU24-based fixtures while delivering daylight white illumination for enhanced visibility and task-oriented lighting applications.

Operating on a 120V electrical system, the lamp produces approximately 800 initial lumens with a 5000K color temperature and an 80 CRI rating. The daylight color appearance is suitable for kitchens, utility rooms, workspaces, laundry areas, corridors, and other environments where bright, crisp illumination is preferred.

The dimmable driver design allows compatibility with properly matched dimming controls for adjustable light output. A 230-degree beam spread provides broad and uniform illumination coverage, while the GU24 base configuration supports use in dedicated GU24 fixtures commonly found in energy-efficient lighting installations.

With a rated life of 15,000 hours, suitability for damp locations, and approval for enclosed fixture applications, this lamp is intended for long-term operation in a wide range of indoor environments. The lamp is designed to operate within ambient temperatures ranging from -13°F to 104°F (-25°C to 40°C).

Technical Performance Specifications
