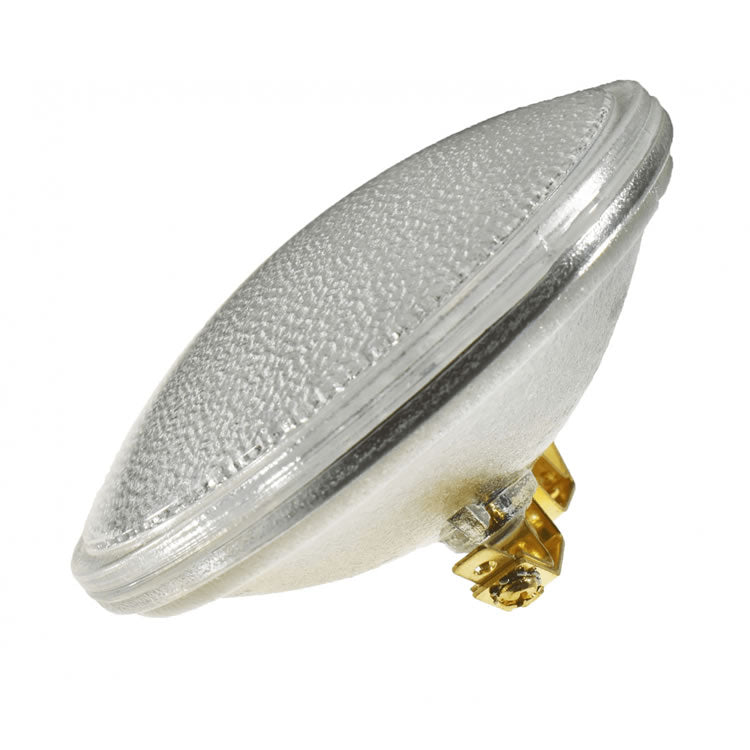

DAMAR 34149A LED9PAR36FL/3K 9W PAR36 LED Flood 30° 3000K GU5.3 12V

Identification & Application

DAMAR 34149A LED9PAR36FL/3K 9W PAR36 LED Flood 30° 3000K GU5.3 12V

The DAMAR 34149A LED9PAR36FL/3K 9W PAR36 LED Flood 30° 3000K GU5.3 12V is a Damar led lamp with verified performance specifications including Wattage: 9W • Voltage: 12V • Amps: pf >0.6 Initial lumens: 600 • Color temperature: 3000K • CRI: 80 • Beam spread: 30 Degrees. It is intended for compatible residential, commercial, hospitality, retail, maintenance, retrofit, and replacement fixtures requiring the exact lamp shape, base, voltage, color temperature, and dimming configuration.

Construction and operation are defined by the exact manufacturer configuration for this SKU. Verified details include mounting or base configuration of GU5.3; Lamp shape: PAR36 • Base: GU5.3 • Finish/color: Clear 34149A Cl D LED9PAR36FL/3K 12V 9W • Features: Damp Location • Additional manufacturer information: Suitable for use in open fixtures only Suitable for dry/damp locations; product dimensions of Maximum overall length: 4.75 in. • Diameter: 4.39 in. • Length: 2.34 in.. Install only in equipment designed for the listed wattage, voltage, base, lamp shape, ballast or driver method, operating position, enclosure rating, mounting method, and control requirements.

For specification, purchasing, and maintenance planning, the manufacturer documentation confirms Rated life: 30000 hours; inner/package quantity: 1; case quantity: 12. All products should be installed and used in accordance with applicable electrical codes and the requirements of the compatible fixture or equipment.

Technical Performance Specifications
