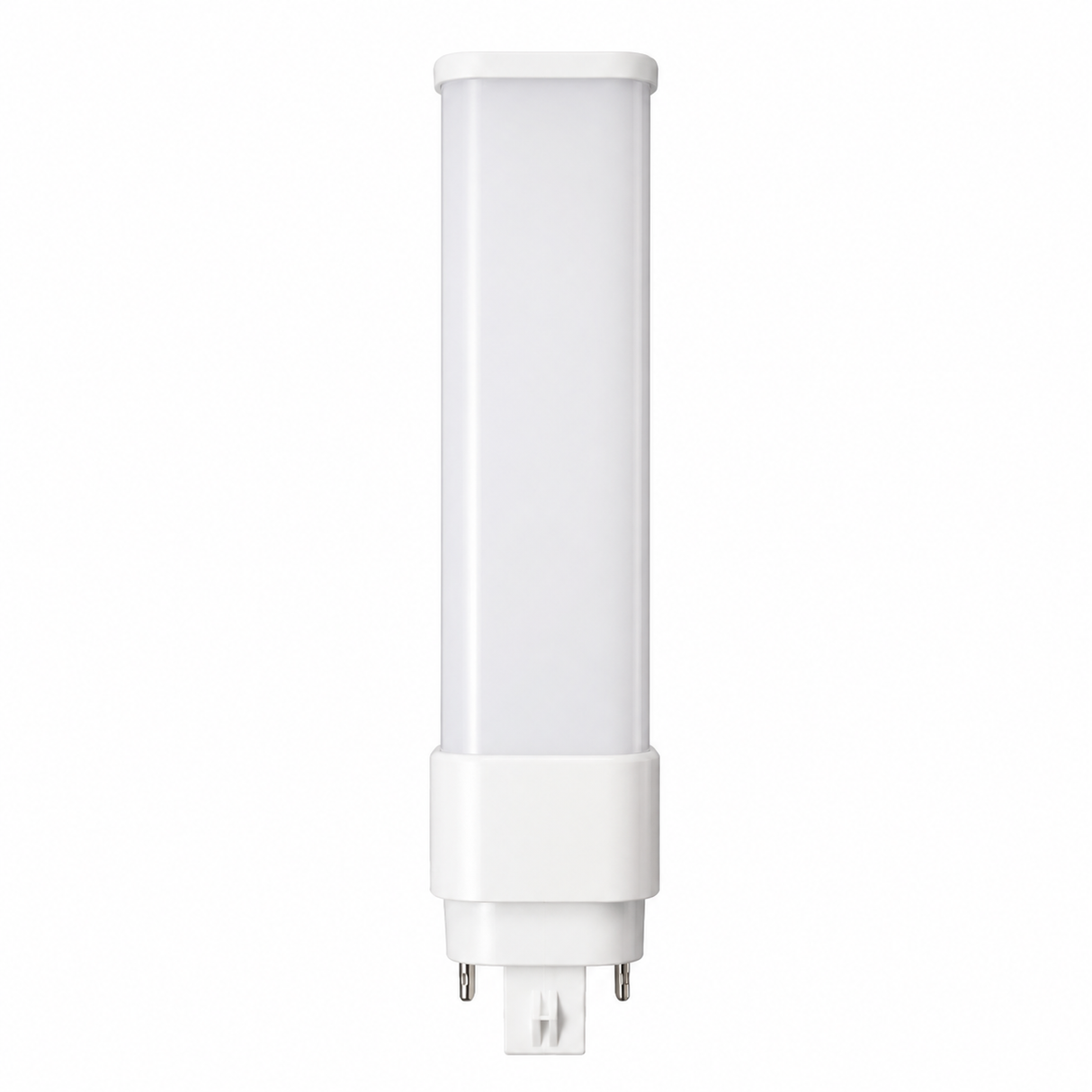

DAMAR 34381A LED12TT/830/4P/DR 12W LED PL Retrofit Lamp 3000K Type A Plug & Play 4-Pin 120-277V

Identification & Application

DAMAR 34381A LED12TT/830/4P/DR 12W LED PL Retrofit Lamp 3000K Type A Plug & Play 4-Pin 120-277V

The DAMAR 34381A LED12TT/830/4P/DR 12W LED PL Retrofit Lamp 3000K Type A Plug & Play 4-Pin 120-277V is a Damar led lamp with verified performance specifications including Wattage: 12W • Voltage: 120-277V • Amps: pf >.9 Color temperature: 3000K • CRI: 80. It is intended for compatible residential, commercial, hospitality, retail, maintenance, retrofit, and replacement fixtures requiring the exact lamp shape, base, voltage, color temperature, and dimming configuration.

Construction and operation are defined by the exact manufacturer configuration for this SKU. Verified details include Lamp shape: PL • Finish/color: White 34381A Whi D LED12TT/830/4P/DR 12W 3K • Additional manufacturer information: Not For Use With Dimmers Input voltage not applicable. Ballast dependent Not for use with Emergency Ballast Ambient Operating Temperature:-40°F to 104°F (-40°C to 40°C); product dimensions of Diameter: 1.34 in. • Length: 6.07 in.. Install only in equipment designed for the listed wattage, voltage, base, lamp shape, ballast or driver method, operating position, enclosure rating, mounting method, and control requirements.

For specification, purchasing, and maintenance planning, the manufacturer documentation confirms Rated life: 50000 hours; case quantity: 48. All products should be installed and used in accordance with applicable electrical codes and the requirements of the compatible fixture or equipment.

Technical Performance Specifications
