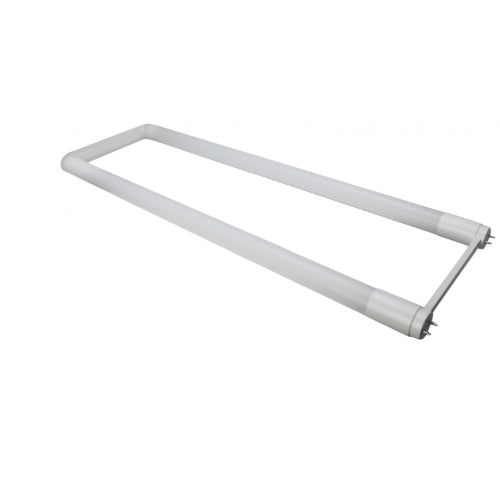

DAMAR 35497A LED15T8/850/U6/HYBRID/SS 15W 2ft T8 U-Bend LED Tube 5000K Type A+B Hybrid G13 Base 120-277V

Identification & Application

DAMAR 35497A LED15T8/850/U6/HYBRID/SS 15W 2ft T8 U-Bend LED Tube 5000K Type A+B Hybrid G13 Base 120-277V

The DAMAR 35497A LED15T8/850/U6/HYBRID/SS 15W 2ft T8 U-Bend LED Tube 5000K Type A+B Hybrid G13 Base 120-277V is a Damar led linear lamp with verified performance specifications including Wattage: 15W • Voltage: 120-277V Initial lumens: 2100 • Color temperature: 5000K • CRI: 80 • Beam spread: 160 Degree. It is intended for compatible strip lights, troffers, task lights, display lighting, commercial interiors, institutional facilities, and replacement applications requiring the exact lamp length, base, and ballast or direct-wire configuration.

Construction and operation are defined by the exact manufacturer configuration for this SKU. Verified details include mounting or base configuration of G13; Lamp shape: T8 • Base: G13 • Additional manufacturer information: Leg spacing: 6 inches Not for use with emergency lighting Not for use with emergency exits; product dimensions of Maximum overall length: 23.25 in. • Diameter: 1.1 in. • Length: 22.8 in.. Install only in equipment designed for the listed wattage, voltage, base, lamp shape, ballast or driver method, operating position, enclosure rating, mounting method, and control requirements.

For specification, purchasing, and maintenance planning, the manufacturer documentation confirms Rated life: 50000 hours; case quantity: 12. All products should be installed and used in accordance with applicable electrical codes and the requirements of the compatible fixture or equipment.

Technical Performance Specifications
