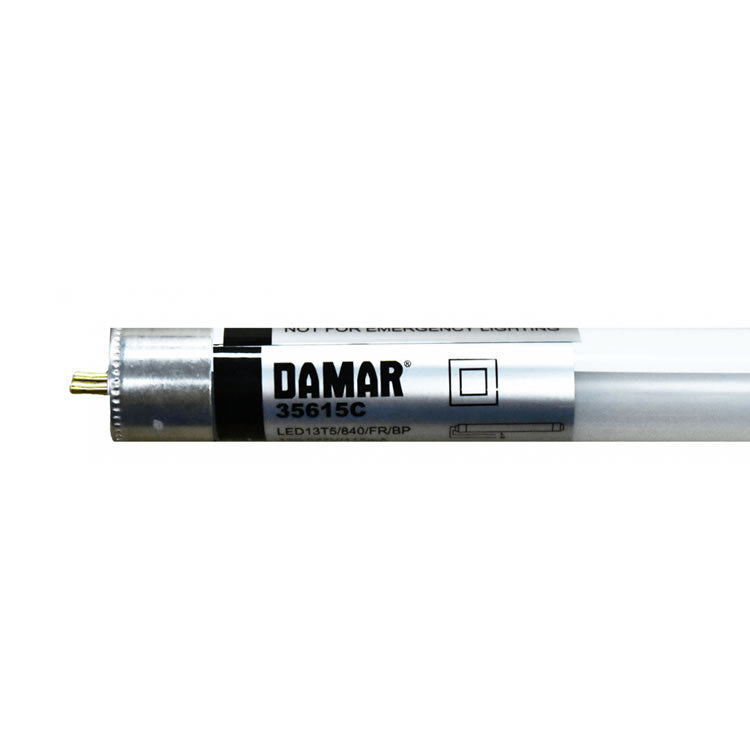

DAMAR 35615C LED13T5/840/FR/BP 13W 4ft T5 LED Tube 4000K Frosted Type B Ballast Bypass Safety Shield Sleeve G5 120-277V

Identification & Application

DAMAR 35615C LED13T5/840/FR/BP 13W 4ft T5 LED Tube 4000K Frosted Type B Ballast Bypass Safety Shield Sleeve G5 120-277V

The DAMAR 35615C LED13T5/840/FR/BP 13W 4ft T5 LED Tube 4000K Frosted Type B Ballast Bypass Safety Shield Sleeve G5 120-277V is a Damar LED linear replacement lamp designed for Type B ballast bypass installations. Operating on 120-277V, this 13W T5 LED tube delivers 1,650 initial lumens of neutral 4000K illumination with an 80 CRI and a frosted lens for smooth, uniform light distribution. It is ideal for strip lights, troffers, task lighting, display lighting, offices, schools, warehouses, retail spaces, and other commercial retrofit applications requiring a direct-wire T5 replacement.

Featuring a G5 mini bi-pin base, this lamp is designed for ballast bypass operation to eliminate ballast maintenance while improving long-term reliability. The frosted Safety Shield sleeve enhances durability while providing a wide 140° beam angle for even illumination. The lamp measures 45.75 inches long by 0.81 inches in diameter and operates from -4°F to 113°F, making it suitable for a wide range of indoor commercial lighting environments.

Engineered for long-lasting performance, the LED13T5/840/FR/BP is rated for 50,000 hours of service life and features a power factor greater than 0.90 for efficient operation. It should be installed only according to the manufacturer's ballast bypass wiring instructions and all applicable electrical codes.

Technical Performance Specifications
