DAMAR 36052O 80/120/150W LED UFO Highway 3500K/4000K/5000K 120-277V

Identification & Application

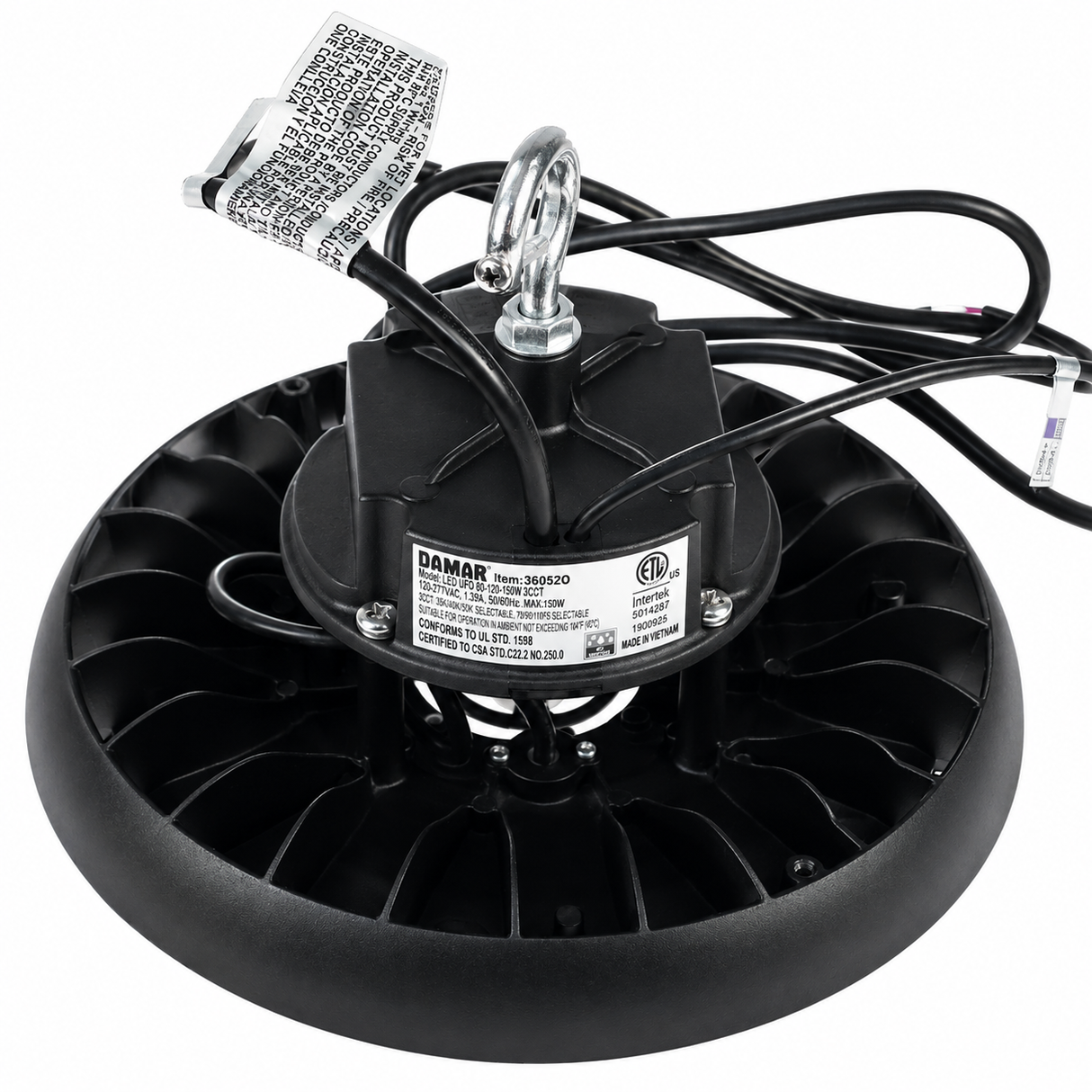

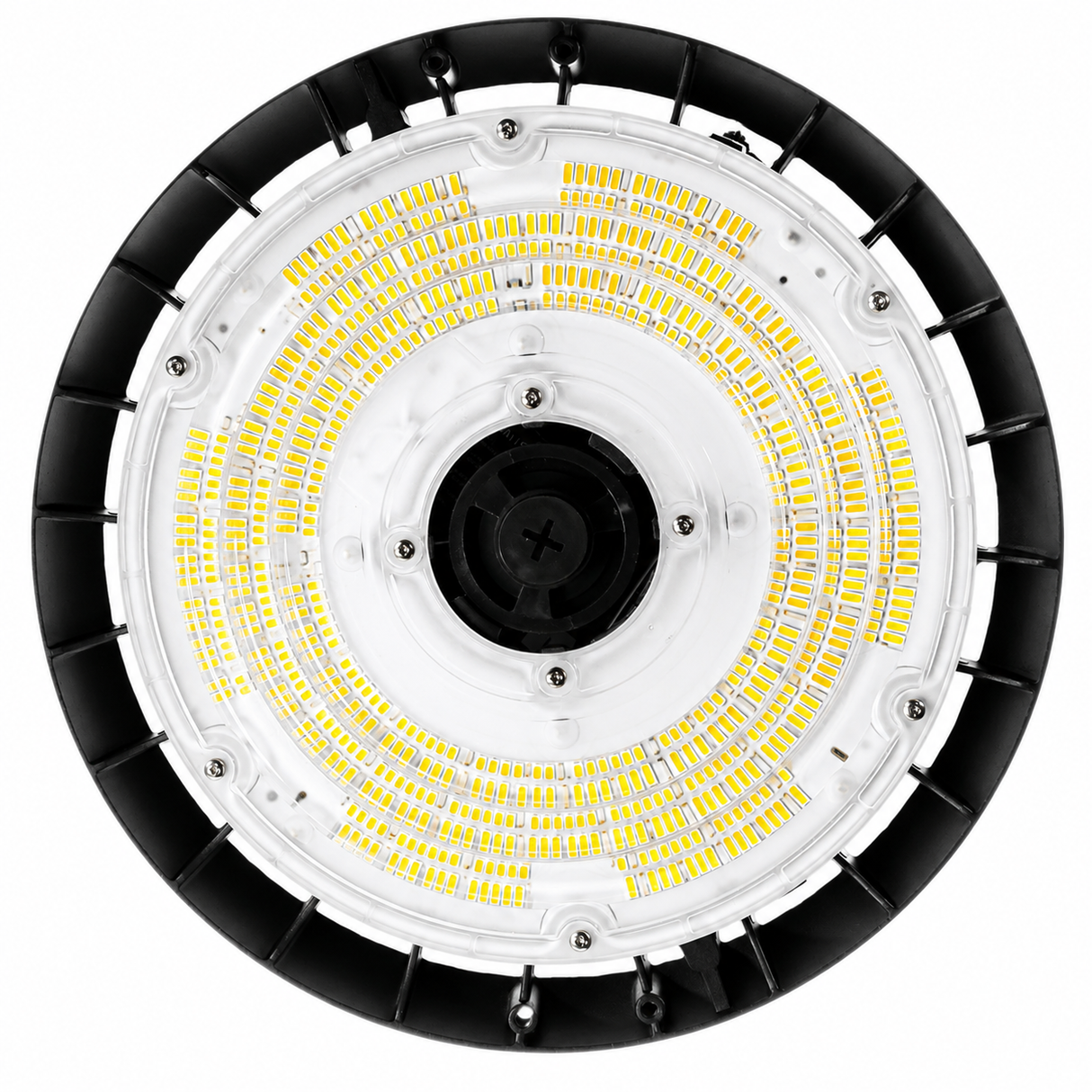

DAMAR 36052O 80W/120W/150W Selectable LED UFO High Bay 3500K/4000K/5000K 120-277V

The DAMAR 36052O is a high-performance LED UFO high bay fixture designed for warehouses, manufacturing facilities, gymnasiums, distribution centers, workshops, and other high-ceiling commercial and industrial applications. Featuring field-selectable wattage and color temperature, the fixture allows installers to customize light output and energy consumption without changing fixtures.

Operating from 120-277VAC, the fixture provides selectable power settings of 80W, 120W, or 150W and selectable color temperatures of 3500K, 4000K, or 5000K. It delivers up to 22,000 initial lumens, supports smooth 0-10V dimming, and offers electronically selectable beam angles of 70°, 90°, or 105° for maximum application flexibility. Designed for wet locations, the fixture includes 6kV surge protection and is rated for a 50,000-hour service life.

Its rugged die-cast housing and high-performance LED optics make the 36052O an ideal replacement for traditional HID high bay fixtures while reducing energy consumption and maintenance costs in demanding indoor and covered outdoor environments.

Technical Performance Specifications
