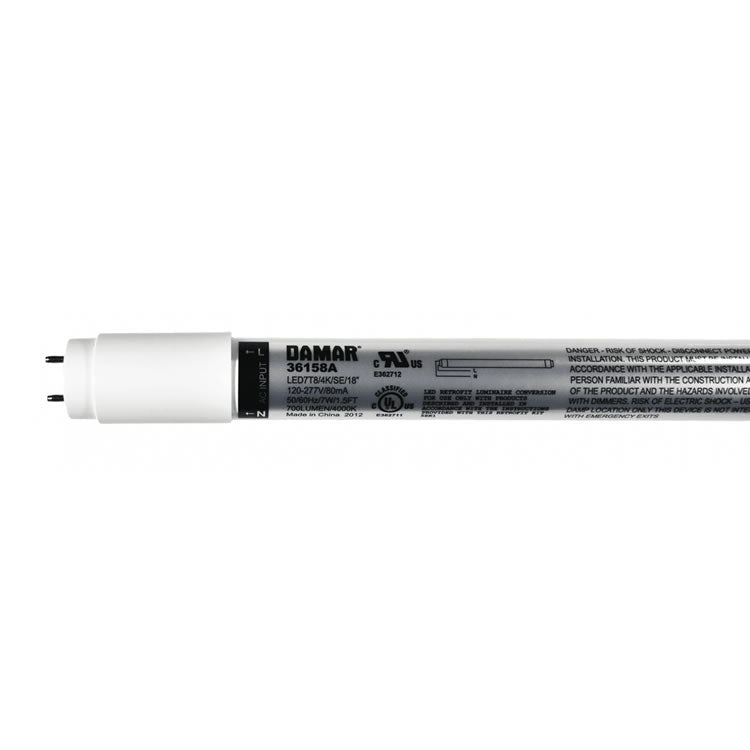

DAMAR 36158A LED7T8/4K/DE/18" 7W 18-Inch T8 LED Tube 4000K Type B Single Ended Ballast Bypass Safety Shield Sleeve G13 120-277V

Identification & Application

DAMAR 36158A LED7T8/4K/DE/18" 7W 18-Inch T8 LED Tube 4000K Type B Single Ended Ballast Bypass Safety Shield Sleeve G13 120-277V

The DAMAR 36158A LED7T8/4K/DE/18" 7W 18-Inch T8 LED Tube 4000K Type B Single Ended Ballast Bypass Safety Shield Sleeve G13 120-277V is a compact Damar LED linear replacement lamp designed for Type B single-ended ballast bypass installations. Operating on 120-277V, this 7W T8 LED tube delivers neutral 4000K illumination with an 80 CRI, making it an ideal replacement for fluorescent lamps used in display cases, task lighting, commercial interiors, retail fixtures, and other applications requiring an 18-inch T8 lamp.

The lamp features a standard G13 medium bi-pin base and is engineered for direct-wire single-ended ballast bypass operation, eliminating the fluorescent ballast to improve reliability while reducing maintenance costs. A durable Safety Shield sleeve provides added protection, and the lamp is rated for damp locations. Measuring 17.75 inches long with a 1.1-inch diameter, it is designed for compatible T8 retrofit fixtures.

Designed for dependable long-term performance, the LED7T8/4K/DE/18 is rated for 50,000 hours of service life, significantly reducing maintenance and replacement frequency. Installation should be performed only according to the manufacturer's ballast bypass wiring instructions and all applicable electrical codes.

Technical Performance Specifications
