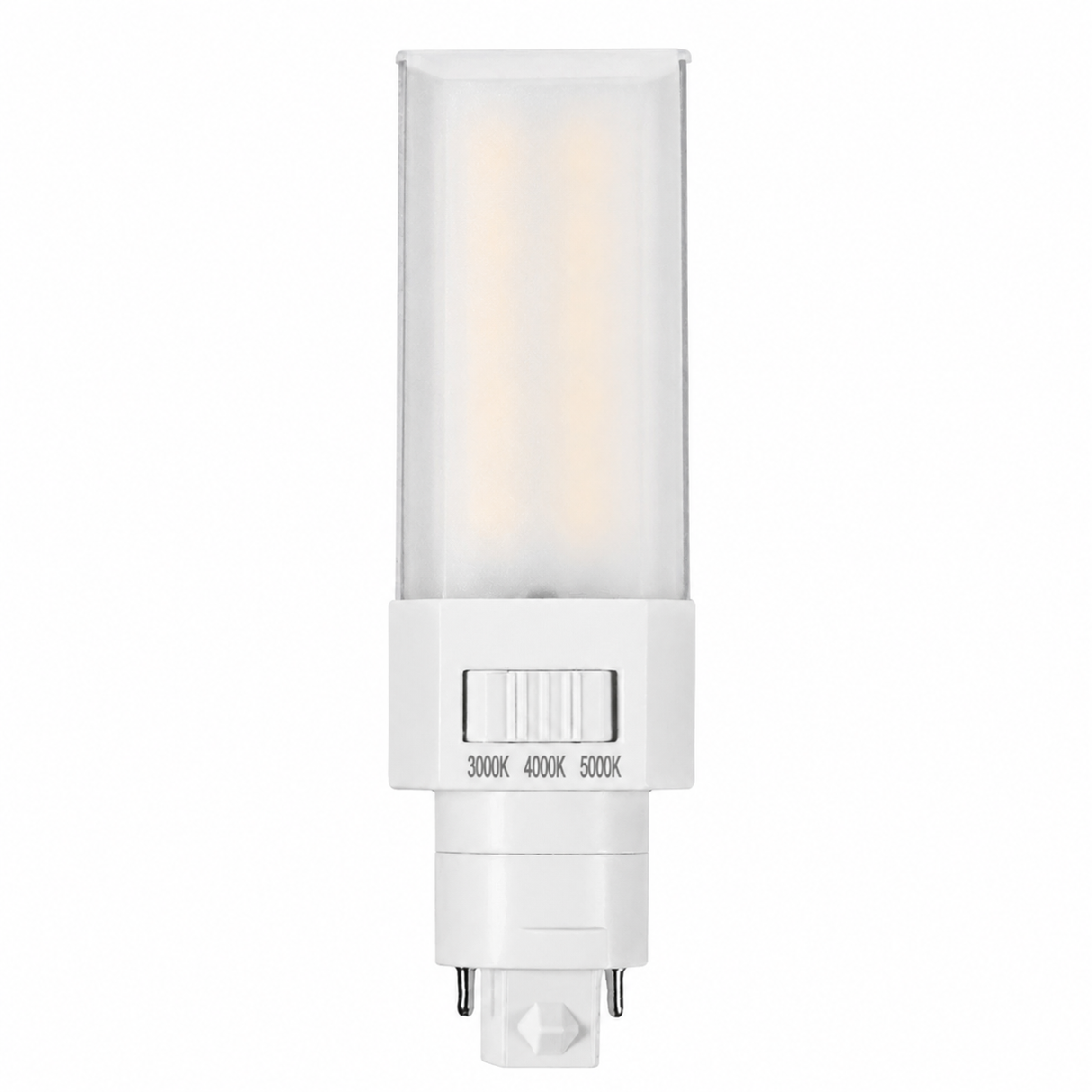

DAMAR 36200A LED11W/PLC/HOR/3CCT/2P 11W LED PL Retrofit Lamp 30K/40K/50K Type B Ballast Bypass G24d-2 2-Pin 120-277V

Identification & Application

DAMAR 36200A LED11W/PLC/HOR/3CCT/2P 11W LED PL Retrofit Lamp 30K/40K/50K Type B Ballast Bypass G24d-2 2-Pin 120-277V

This Damar 36200A LED PL retrofit lamp is an 11 watt replacement designed for ballast bypass applications in fixtures utilizing a G24d-2 two-pin socket. The lamp operates on 120-277VAC 50/60Hz systems and is intended for direct line voltage installation.

The lamp features selectable color temperatures of 3000K, 4000K, and 5000K, allowing field adjustment of light appearance to match application requirements. Visible specifications confirm light output ranging from 1425 to 1500 average initial lumens with an 80 CRI rating.

This retrofit lamp is designed for horizontal operation and incorporates a rotating base to assist with proper lamp orientation. The lamp is intended for enclosed fixture applications and is not designed for use with dimmers or ballasts.

Visible specifications confirm UL dry and damp location listing, operation in ambient temperatures from -4°F to 113°F, and an average rated life of 50,000 hours. The lamp is not intended for emergency exits or emergency lighting applications.

Technical Performance Specifications
