DAMAR 36207A LED3T6/5K/DE/9" 3W 9-Inch T6 LED Tube 5000K Type B Double Ended Ballast Bypass Safety Shield Sleeve G5 120-277V

Identification & Application

DAMAR 36207A LED3T6/5K/DE/9" 3W 9-Inch T6 LED Tube 5000K Type B Double Ended Ballast Bypass Safety Shield Sleeve G5 120-277V

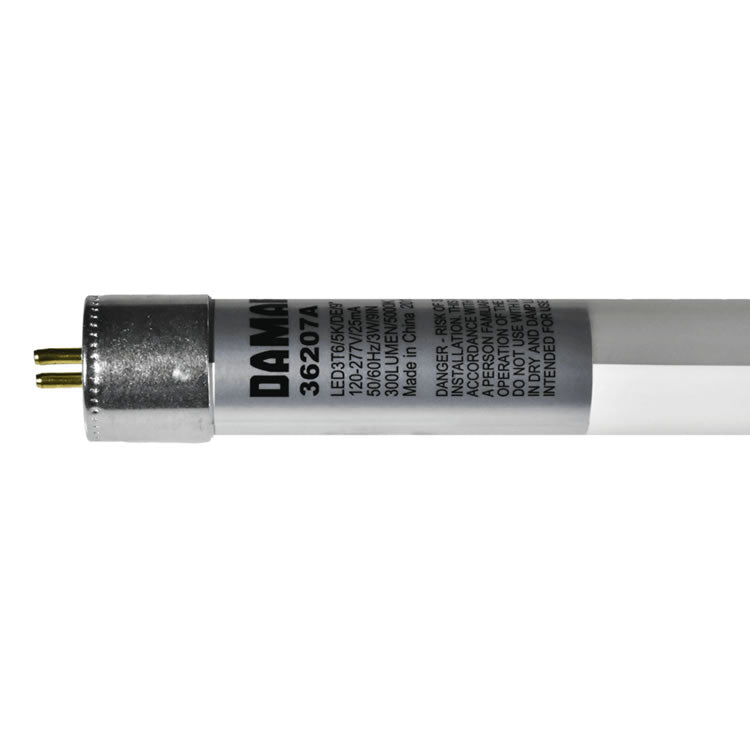

The DAMAR 36207A LED3T6/5K/DE/9" 3W 9-Inch T6 LED Tube 5000K Type B Double Ended Ballast Bypass Safety Shield Sleeve G5 120-277V is a compact Damar LED linear replacement lamp designed for Type B double-ended ballast bypass installations. Operating on 120-277V, this 3W T6 LED tube produces 300 initial lumens of crisp 5000K daylight illumination with an 80 CRI, making it ideal for display cases, under-cabinet fixtures, refrigerated displays, task lighting, commercial interiors, and other specialty applications requiring a 9-inch T6 replacement lamp.

The lamp features a G5 mini bi-pin base and is engineered for direct-wire double-ended ballast bypass operation, eliminating the fluorescent ballast for improved reliability and reduced maintenance costs. Its durable Safety Shield sleeve provides additional protection while maintaining excellent light output. Measuring 9 inches in length with a 0.81-inch diameter, this lamp is an efficient retrofit solution for compatible T6 fluorescent fixtures.

Designed for dependable long-term performance, the LED3T6/5K/DE/9 is rated for 50,000 hours of service life, significantly reducing replacement frequency and maintenance expenses. Installation should be performed only according to the manufacturer's ballast bypass wiring instructions and all applicable electrical codes.

Technical Performance Specifications
