DAMAR 36291A LED15T8/42IN/65K/R17D/BP 15W 42IN LED T8 Tube 6500K Type B Ballast Bypass 120-277V

Identification & Application

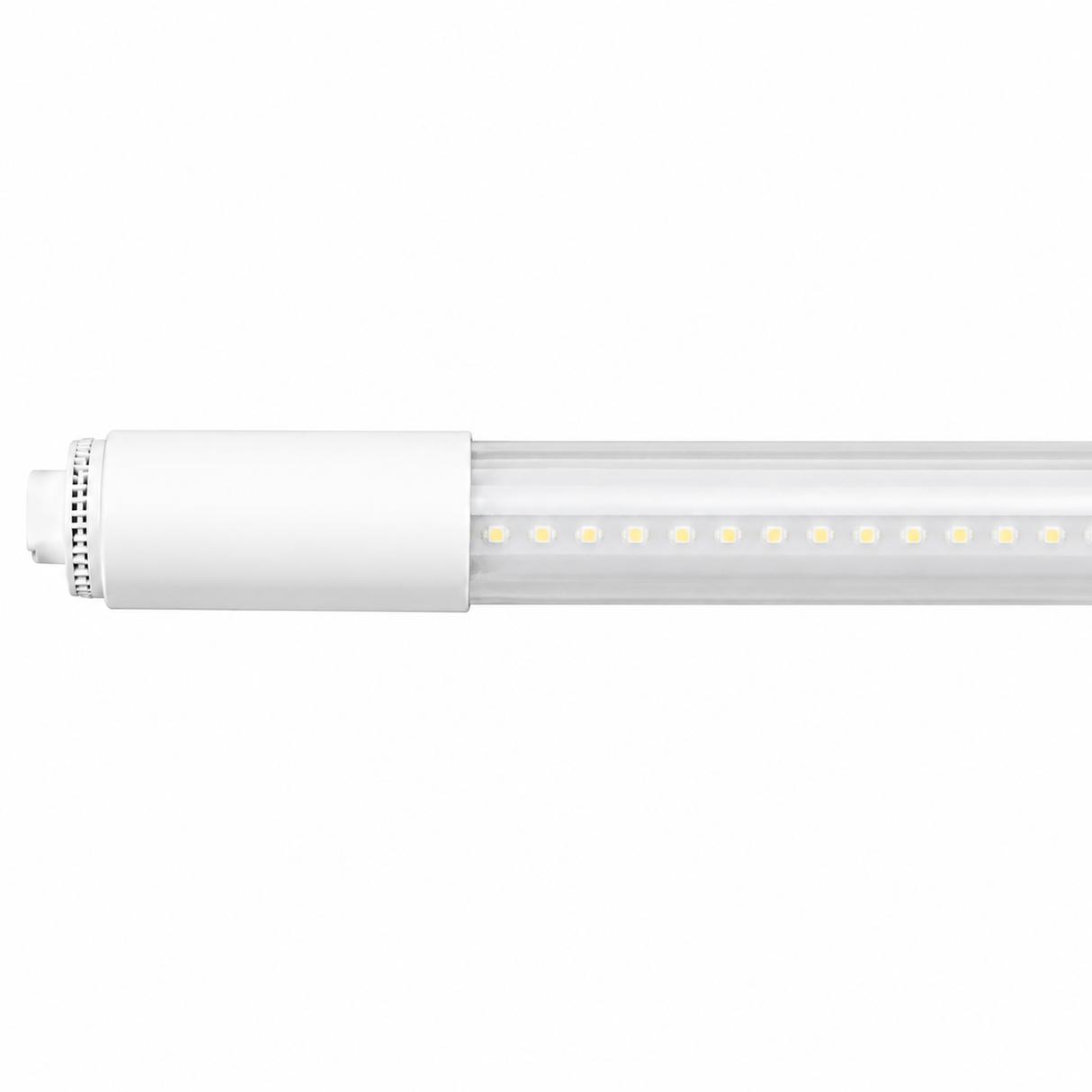

DAMAR 36291A LED15T8/42IN/65K/R17D/BP 15W 42" LED T8 Tube 6500K Type B Ballast Bypass 120-277V

The DAMAR 36291A LED15T8/42IN/65K/R17D/BP is a high-output 42-inch LED T8 replacement tube engineered for Type B ballast bypass installations. Operating directly from 120-277VAC line voltage, this lamp eliminates fluorescent ballast maintenance while providing outstanding energy savings and long-term reliability. Consuming only 15 watts and producing 2,100 initial lumens, it delivers crisp 6500K daylight illumination for commercial, industrial, warehouse, and high-output lighting applications.

Designed for single-ended power using non-shunted sockets, the lamp features an R17D rotating-end base for secure installation in high-output fluorescent fixtures. The double-sided LED strip provides an ultra-wide 330° beam angle for uniform light distribution, while the durable T8 construction is suitable for dry and damp locations. This ballast bypass lamp must not be used with fluorescent ballasts, dimmers, or emergency lighting fixtures.

Rated for 50,000 hours of service life, the lamp features a CRI greater than 80 and operates reliably in ambient temperatures from -4°F to 113°F (-20°C to 45°C). It is ideal for warehouses, manufacturing facilities, retail stores, parking garages, commercial buildings, utility areas, and other applications requiring dependable high-output linear LED lighting.

Technical Performance Specifications
