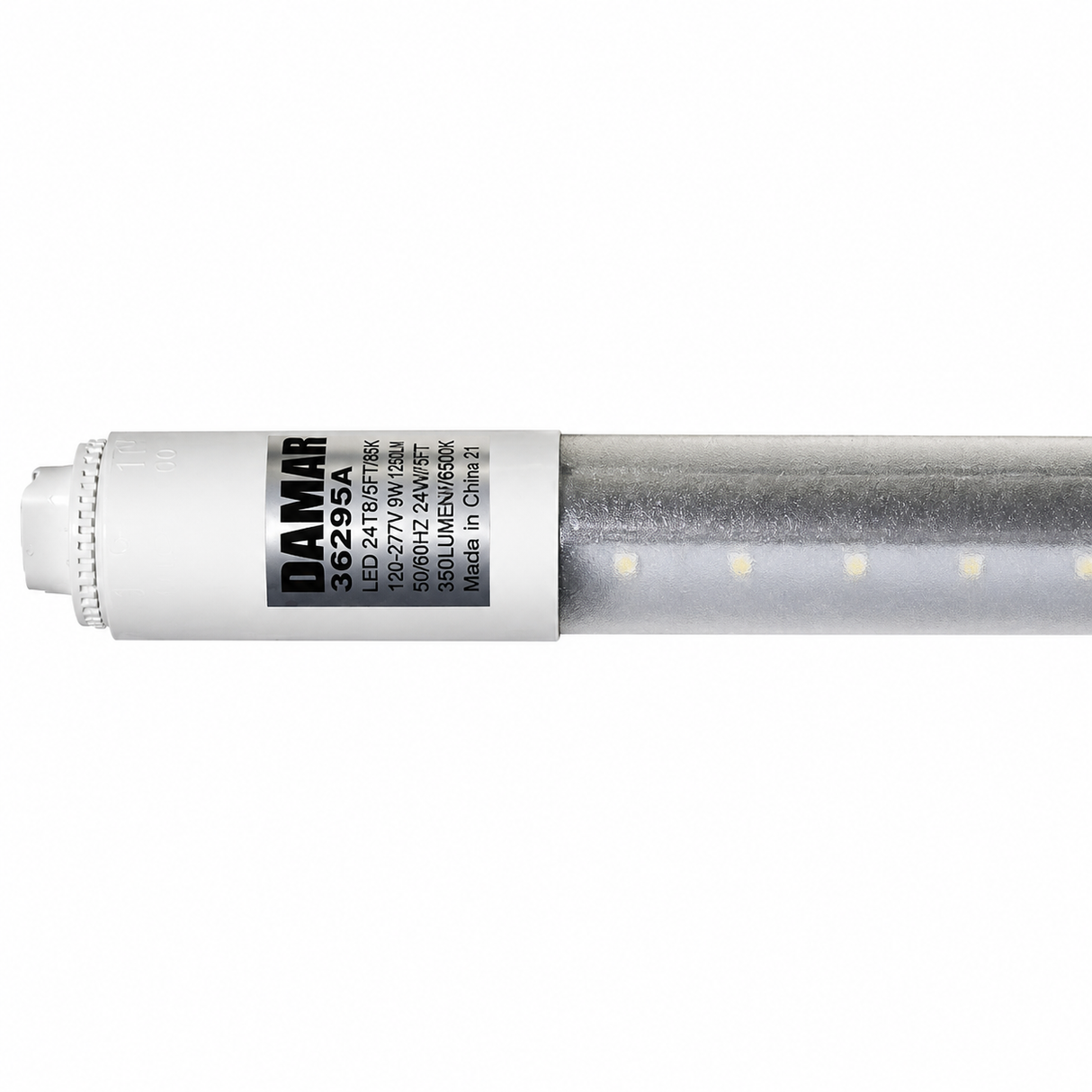

DAMAR 36295A LED24T8/5FT/65K/R17D/BP 24W 5ft LED T8 Tube 6500K Type B Ballast Bypass R17D Base 120-277V

Identification & Application

DAMAR 36295A LED24T8/5FT/65K/R17D/BP 24W 5ft LED T8 Tube 6500K Type B Ballast Bypass R17D Base 120-277V

The DAMAR 36295A LED24T8/5FT/65K/R17D/BP is a 24-watt, 5-foot LED T8 replacement lamp engineered to replace high-output fluorescent tubes in commercial, industrial, warehouse, and retail lighting applications. Producing a crisp 6500K daylight color temperature, this lamp delivers bright, high-visibility illumination while reducing energy consumption and maintenance costs. Designed for direct line voltage operation, it utilizes Type B ballast bypass technology and operates on 120-277VAC systems.

This single-ended power LED tube features an R17D rotating base and is intended for use only in fixtures that have been rewired to bypass the ballast. It must be installed using non-shunted sockets and is not compatible with dimmers or fluorescent ballasts. The frosted lens provides a wide 330° beam angle with dual-sided LED strips for uniform light distribution and reduced glare, making it an excellent solution for high-bay fixtures, strip lights, industrial luminaires, and other 5-foot fluorescent replacements.

Rated for 50,000 hours of service life, the DAMAR 36295A delivers approximately 3,350 initial lumens with a CRI greater than 80 for dependable color rendering. Designed for dry and damp locations, it operates in ambient temperatures from -4°F to 113°F (-20°C to 45°C) and provides a long-lasting, energy-efficient upgrade for commercial lighting systems.

Technical Performance Specifications
