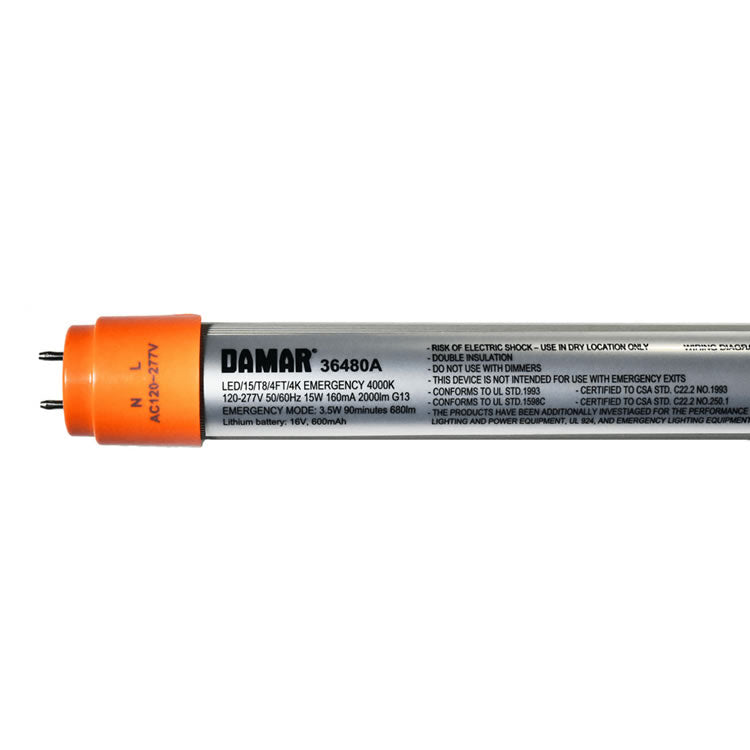

Damar 36480A LED/15/T8/4FT/4K/EMERGENCY 15W 4ft LED T8 Tube 4000K Type B with 90-min Emergency Backup 120-277V

Identification & Application

Damar 36480A LED/15/T8/4FT/4K/EMERGENCY 15W 4ft LED T8 Tube 4000K Type B with 90-min Emergency Backup 120-277V.

The Damar 36480A is a 4 foot LED T8 tube engineered for commercial retrofit applications requiring normal operation and integrated emergency illumination capability. This Type B ballast bypass lamp operates directly on 120-277VAC input and delivers 4000K cool white illumination for offices, schools, corridors, stairwells, utility spaces, healthcare facilities, and other linear fluorescent retrofit projects. The integrated 90 minute emergency backup system provides approximately 600 emergency lumens during power interruptions without requiring a separate emergency ballast. This single-ended bypass lamp is designed for direct wire installation using non-shunted lampholders and includes separate switched and continuous power inputs for normal and emergency operation.

The Damar 36480A LED/15/T8/4FT/4K/EMERGENCY 15W 4ft LED T8 Tube 4000K Type B with 90-min Emergency Backup 120-277V is designed for commercial, industrial, residential, maintenance, and specification-grade lighting applications requiring compatible installation conditions and documented manufacturer reference information.

The product configuration supports use where the listed electrical, optical, mechanical, mounting, and control characteristics match fixture, replacement, and project requirements.

Technical Performance Specifications
