DAMAR 36682B LED27CC/3CCT 12W/18W/27W LED HID Corn Retrofit Bulb 30K/40K/50K E39 Mogul Base 120-277V
Specifications & Downloads
DAMAR 36682B LED27CC/3CCT 12W/18W/27W LED HID Corn Retrofit Bulb 30...
Description
Description
Identification & Application
DAMAR 36682B LED27CC/3CCT 12W/18W/27W LED HID Corn Retrofit Bulb 30K/40K/50K E39 Mogul Base 120-277V

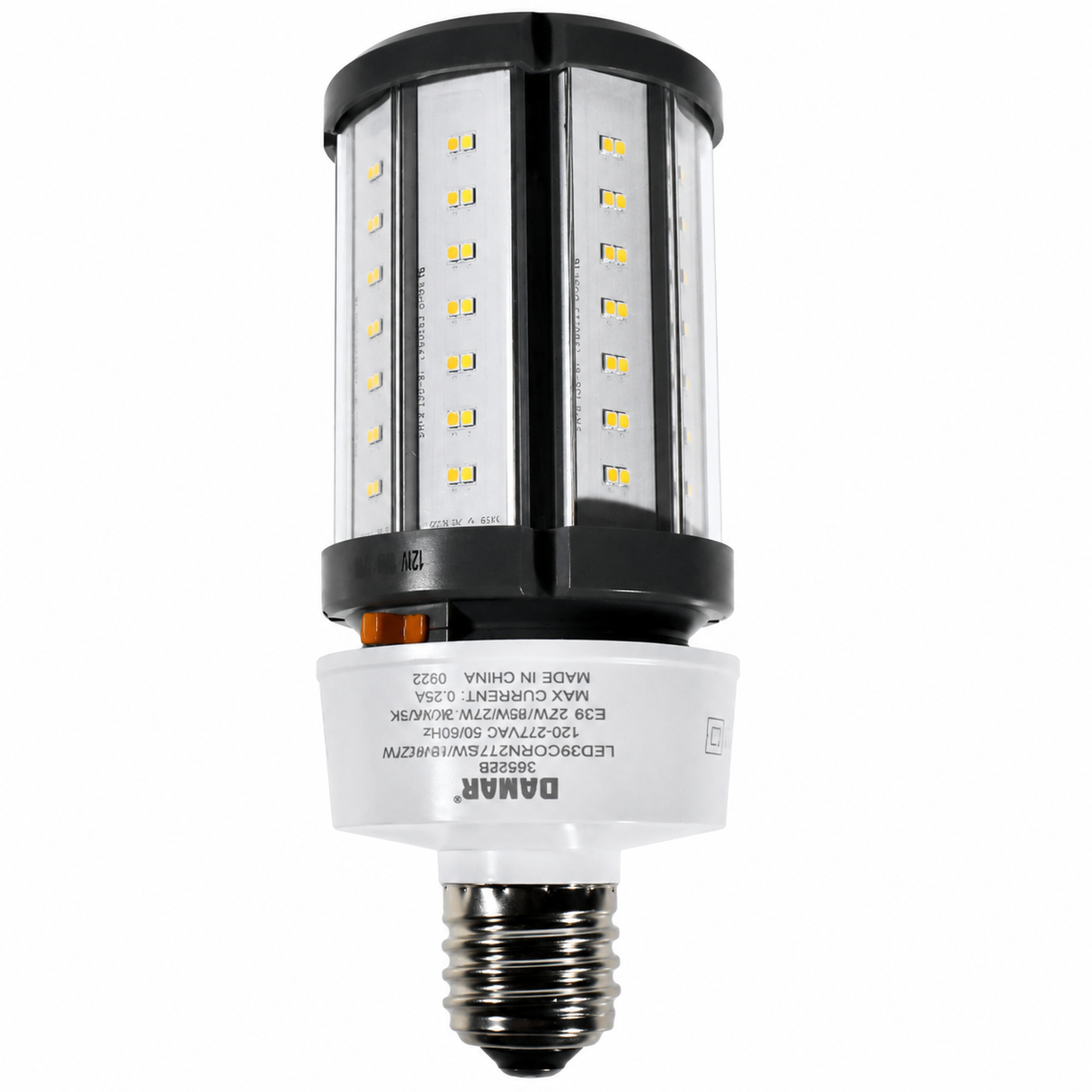

This Damar 36682B LED HID corn retrofit bulb is a field-selectable retrofit lamp designed for replacing existing HID lighting systems. The lamp operates on 120-277VAC 50/60Hz power systems and utilizes an E39 mogul base for installation in compatible HID retrofit fixtures.
The lamp provides selectable wattage settings of 12W, 18W, or 27W and selectable color temperatures of 3000K, 4000K, or 5000K. Visible specifications confirm average initial lumen outputs of 1680, 2520, and 3780 lumens depending on the selected power setting.
The corn-style design delivers omnidirectional illumination with a 360 degree beam angle, making it suitable for post top fixtures, area lighting, site lighting, and other HID retrofit applications requiring broad light distribution.
Visible specifications confirm suitability for dry and damp locations, enclosed fixture compatibility, 4kV surge protection, and operation in ambient temperatures from -40°F to 113°F. The lamp is not for use with ballasts and provides an average rated life of 50,000 hours.
Technical Performance Specifications
