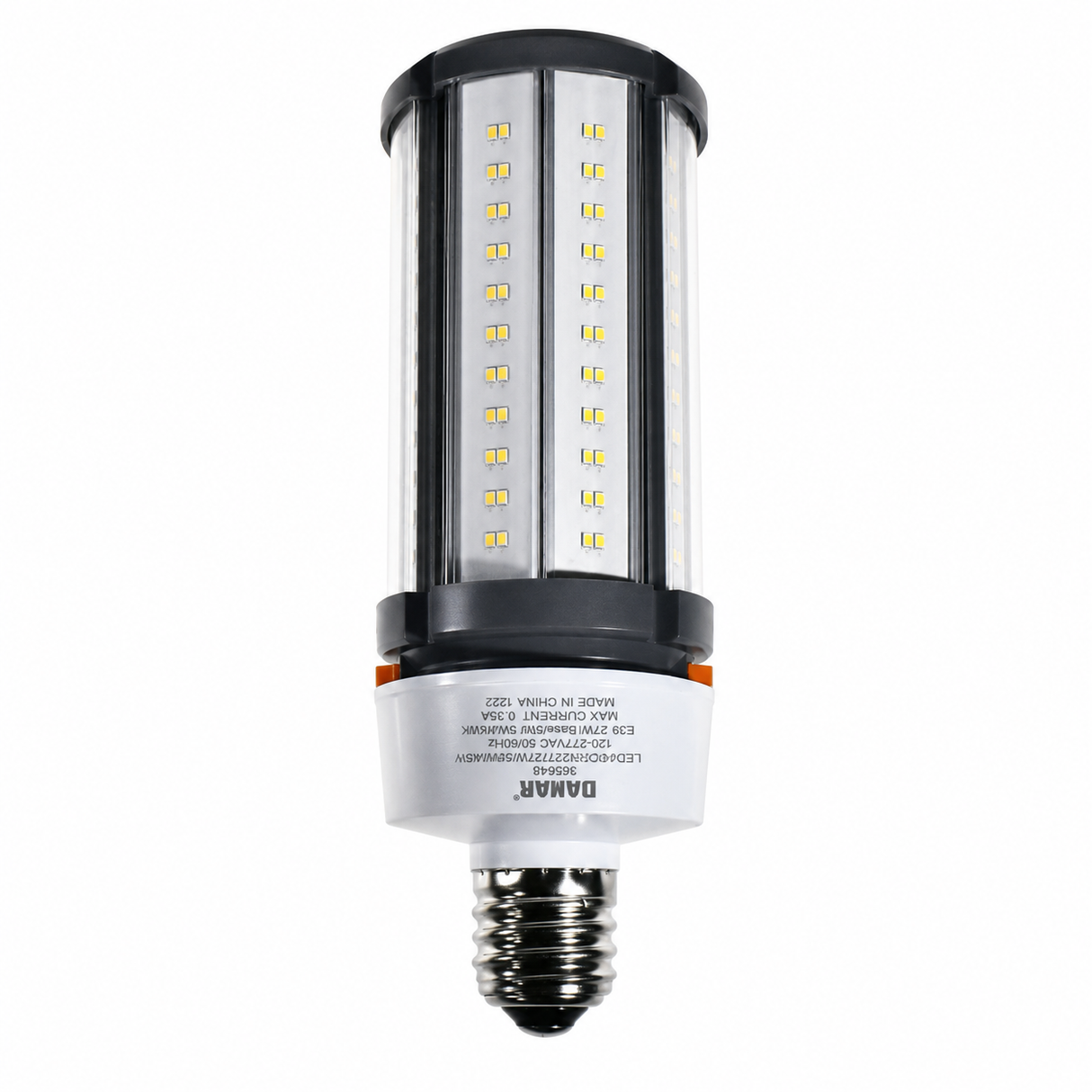

DAMAR 36684B LED45CC/3CCT 27W/36W/45W LED HID Corn Retrofit Bulb 30K/40K/50K E39 Mogul Base 120-277V
Specifications & Downloads
DAMAR 36684B LED45CC/3CCT 27W/36W/45W LED HID Corn Retrofit Bulb 30...
Description
Description
Identification & Application
DAMAR 36684B LED45CC/3CCT 27W/36W/45W LED HID Corn Retrofit Bulb 30K/40K/50K E39 Mogul Base 120-277V
This Damar 36684B LED HID corn retrofit bulb is a field-selectable retrofit lamp designed for replacing existing HID lighting systems. The lamp operates on 120-277VAC 50/60Hz power systems and features an E39 mogul base for installation in compatible HID retrofit fixtures.
The lamp provides selectable wattage settings of 27W, 36W, or 45W and selectable color temperatures of 3000K, 4000K, or 5000K. Visible specifications confirm average initial lumen outputs of 3780, 5040, and 6300 lumens depending on the selected power setting.
The corn-style design delivers omnidirectional illumination with a 360 degree beam angle, making it suitable for area lighting, post top fixtures, site lighting, and other HID retrofit applications requiring broad light distribution. The lamp is identified as Type B and requires ballast bypass installation.
Visible specifications confirm suitability for dry and damp locations, enclosed fixture compatibility, 4kV surge protection, and operation in ambient temperatures from -40°F to 113°F. The lamp may be dimmed when used with an optional sensor and remote and provides an average rated life of 50,000 hours.
Technical Performance Specifications
