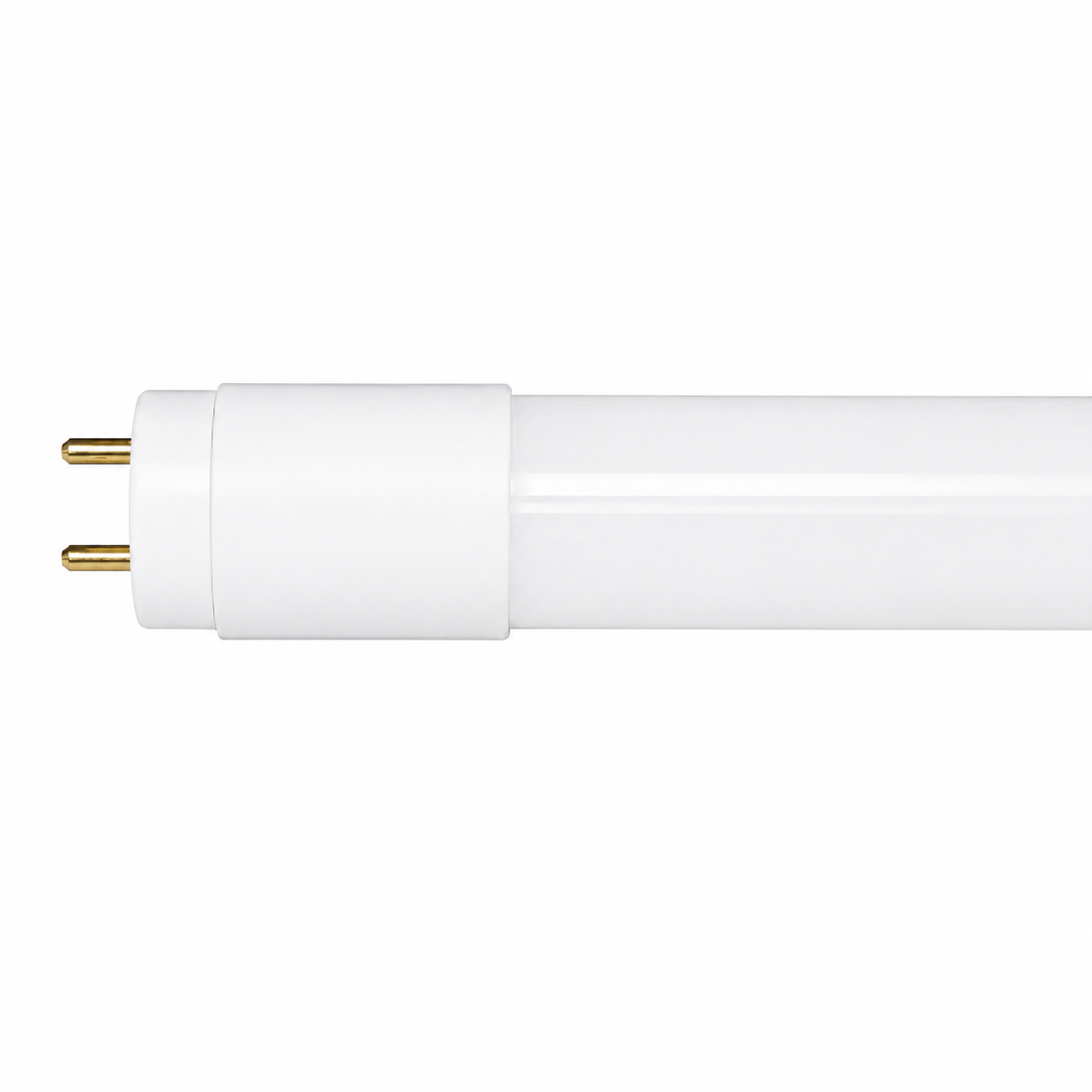

DAMAR 36988A LED18T8/35K/BP/D/SS 18W 4ft LED T8 Tube 3500K Type B Ballast Bypass 120V

Identification & Application

DAMAR 36988A LED18T8/35K/BP/D/SS 18W 4ft LED T8 Tube 3500K Type B Ballast Bypass 120V

The DAMAR 36988A LED18T8/35K/BP/D/SS 18W 4ft LED T8 Tube 3500K Type B Ballast Bypass 120V is a high-performance Damar LED linear replacement lamp designed for Type B single-ended ballast bypass installations. Operating on 120V, this 18W T8 LED tube delivers neutral 3500K illumination with an 80 CRI and supports Triac dimming, making it an excellent choice for offices, retail spaces, schools, commercial buildings, healthcare facilities, and other applications where smooth dimming and energy efficiency are required.

The lamp features a standard G13 medium bi-pin base and is engineered for direct-wire ballast bypass installation, eliminating the fluorescent ballast for improved reliability and lower maintenance costs. It is safety shielded, rated for damp locations, and operates in ambient temperatures from -4°F (-20°C) to 113°F (45°C). This lamp is intended for use with Triac dimmers only and is not compatible with fluorescent ballasts or emergency lighting fixtures.

Designed for dependable long-term performance, the LED18T8/35K/BP/D/SS is rated for 50,000 hours of service life, significantly reducing maintenance and replacement frequency. Installation should be performed only according to the manufacturer's wiring instructions and all applicable electrical codes.

Technical Performance Specifications
