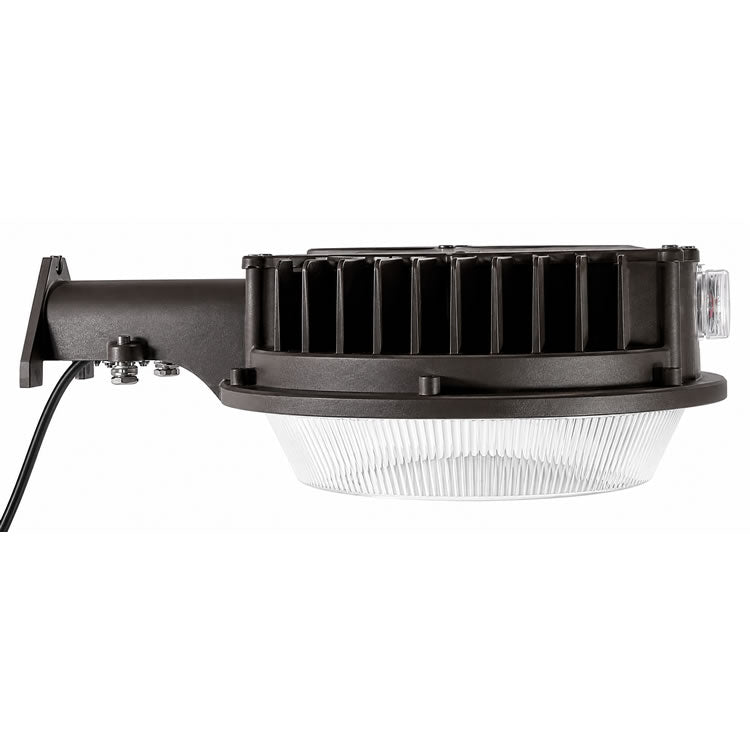

DAMAR 37156A 48-64-80W LED Barn Dusk to Dawn Fixture 3000K/4000K/5000K with Photocell IP65 120-277V


$138.50
Shipping calculated at checkout.

% BULK SAVINGS Applied at checkout
Spend $100+ 5% OFF
Spend $500+ 7% OFF

Specifications & Downloads


Description

Identification & Application

DAMAR 37156A 48-64-80W LED Barn Dusk to Dawn Fixture 3000K/4000K/5000K with Photocell IP65 120-277V

The DAMAR 37156A is a selectable wattage LED barn/dusk-to-dawn fixture designed for dependable outdoor area lighting. Operating on 120-277VAC, this fixture features selectable 48W, 64W, or 80W power settings along with selectable 3000K, 4000K, or 5000K color temperatures, allowing the light output to be tailored to the installation.

Producing up to 10,400 initial lumens with an efficacy of 130 lumens per watt, the fixture incorporates a selectable on/off photocell for automatic dusk-to-dawn operation. It is dimmable using the internal wattage switch and features a 120° beam angle, CRI of 80, and a rated life of 50,000 hours.

Built for outdoor installations, the fixture is IP65 rated for wet locations and operates in ambient temperatures from -40°F to 113°F. Additional features include 4kV surge protection, a power factor greater than 0.9, and a durable housing measuring 11.38 inches long, 7.01 inches wide, and 4.88 inches high.

Technical Performance Specifications

Brand: DAMAR
Item Number: 37156A
Product Type: LED Barn / Dusk-to-Dawn Fixture
Description: LED Barn / Dusk to Dawn Light Watt / CCT
Lighting Technology: LED
Selectable Wattage: 48W / 64W / 80W
Voltage: 120-277VAC 50/60Hz
Color Temperature: Selectable 3000K / 4000K / 5000K
CRI: 80
Initial Lumens: 6,240 / 8,320 / 10,400 lm
Luminous Efficacy: 130 lm/W
Average Life: 50,000 Hours
Dimming: Yes, with Internal Wattage Switch Only
Power Factor: >0.9
Photocell: On/Off Selectable
Beam Angle: 120°
Location Rating: Suitable for Wet Locations
IP Rating: IP65
Surge Protection: 4kV
Operating Temperature: -40°F to 113°F
Length: 11.38 in. (289.05 mm)
Width: 7.01 in. (178.05 mm)
Height: 4.88 in. (123.95 mm)
Documentation: See manufacturer specification sheet.
