DAMAR 37353A LED9W/4IN/SLIM/GIMBAL/5CCT 9W 4IN LED Gimbal Downlight 27K/30K/35K/40K/50K Dimmable White Finish 120V

Identification & Application

DAMAR 37353A LED9W/4IN/SLIM/GIMBAL/5CCT 9W 4IN LED Gimbal Downlight 27K/30K/35K/40K/50K Dimmable White Finish 120V

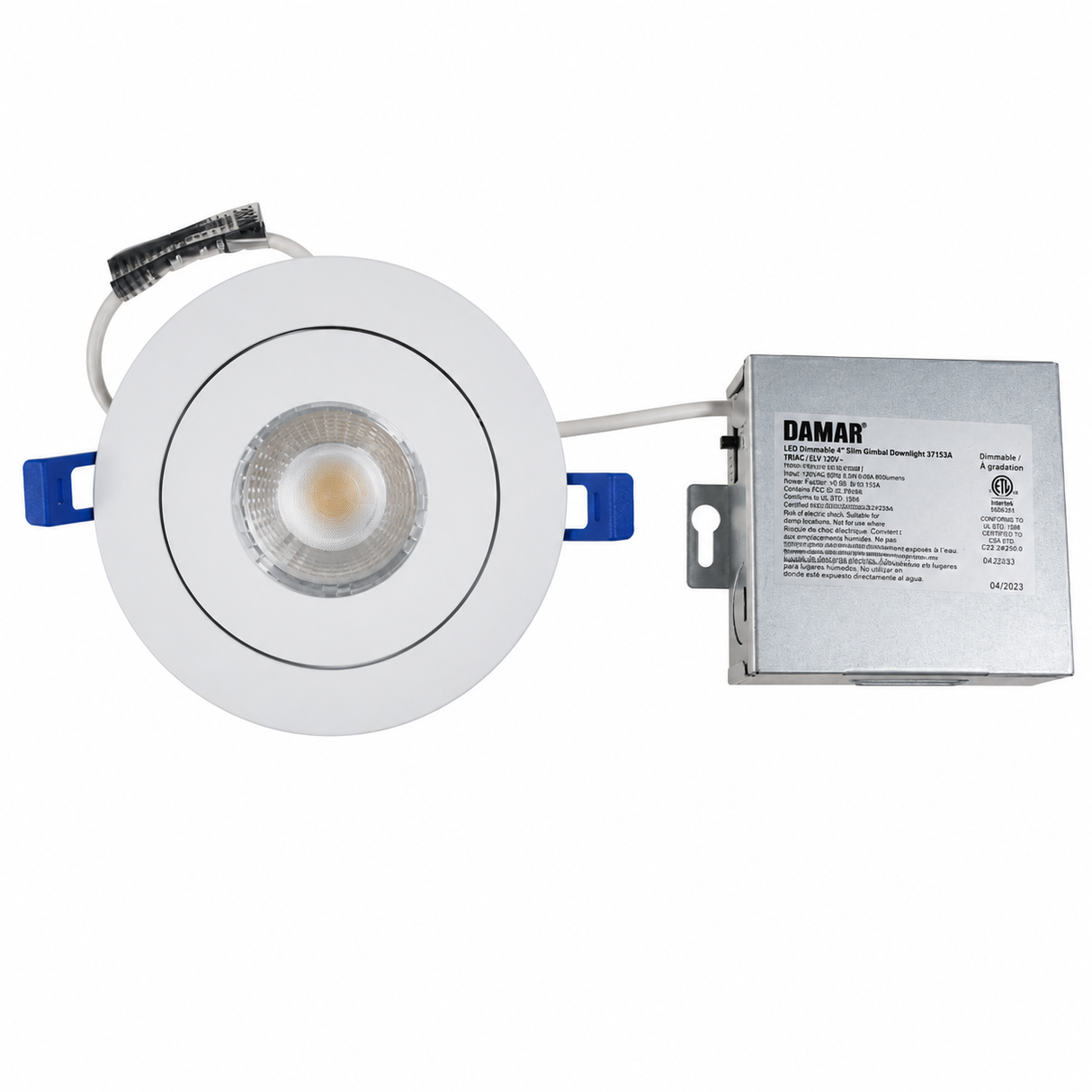

This Damar 37353A LED gimbal downlight is a 9 watt, 120 volt recessed lighting fixture designed for 4-inch installations. The slim-profile design incorporates an adjustable gimbal assembly for directional lighting applications where aiming flexibility is required.

The fixture features selectable color temperatures of 2700K, 3000K, 3500K, 4000K, and 5000K. Visible specifications confirm a 90 CRI rating and light output ranging from 650 to 750 average initial lumens.

This downlight is dimmable and is identified as a Type IC fixture. The integrated gimbal design allows directional light adjustment while maintaining a low-profile recessed installation.

Visible specifications confirm suitability for damp locations, operation from -13°F to 104°F, and an average rated life of 50,000 hours. The fixture includes an 18 inch LED extension cable and a separate driver box assembly.

Technical Performance Specifications
