Diode LED DI-0783 8-Way Hard-Wire Splitter

Diode LED DI-0783 8-Way Hard-Wire Splitter

Diode LED

Your Price:
Regular price $12.60
Regular price Sale price $12.60
Sale Sold out
Shipping calculated at checkout.

SKU: DI-0783

UPC: 848333006425

Shipping Calculated at Checkout
View full details
  • Description

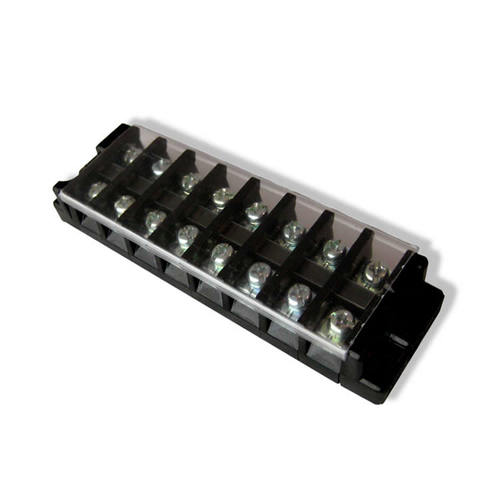

Diode LED DI-0783 8-Way Hard-Wire Splitter

8-Way Hard-Wire Splitters are a convenient accessory for joining up to seven LED light fixtures, LED strip light runs, or LED light bar runs to a single power source. The UL Listed junction features eight terminals for a positive connection and eight terminals for a negative connection, and can be used for any voltage up to 450V AC.

This terminal block is perfect for creating parallel runs with LED Strip Lights, and any other LED light installation where many fixtures or strip sections need to be powered by the same source, but each need its own distinct connection to power.

The 8-Way Hard-Wire Splitter is made of heavy-duty plastic and comes with a plastic cover to protect the splitter’s electrical connections. Each splitter has a hole on each end for secure mounting to a flat surface, and is UL Listed.

  • Certifications:  UL Component Recognized

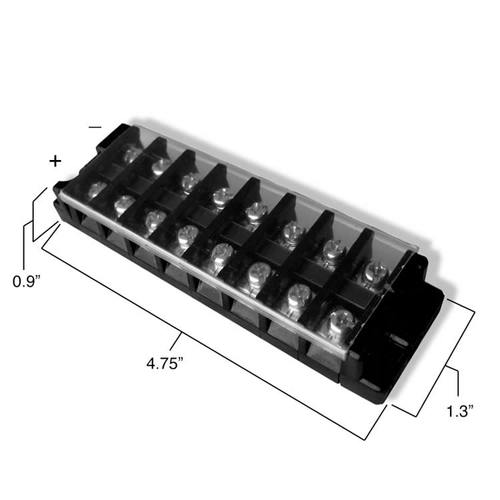

  • Dimensions:  Length = 4.75", Width = 1.3", Height = 0.9"
  • Environment / IP Rating:  Indoor
  • Max Voltage:  450V AC
  • Max Amperage Rating:  30A
  • Connection Type:  Screw down terminal lock
  • Connection Size:  Fits 24-12AWG wire.  Stud size: 4mm
  • Housing:  Phenolic Aldehyde
  • Mounting:  Mount with applicable screws (mounting screws not included)
  • Spec Sheet
