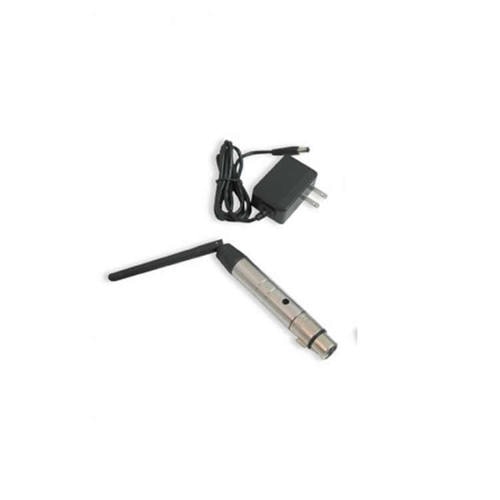

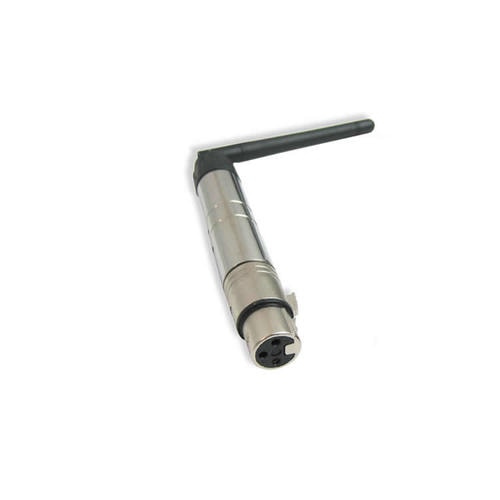

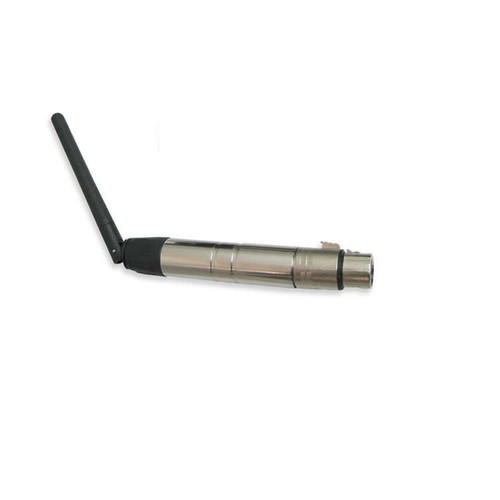

Diode LED DI-0820 Female DMX Wireless Receiver/Transmitter

The DMX Wireless Receiver/Transmitter will wirelessly send DMX signals between controllers and fixtures via XLR-3 connections. The transmitter/receivers are sold individually (in male and female genders) to communicate between DMX Controllers and one or more DMX-enabled fixtures. Both genders act as a transmitter or receiver and may be used in multiple master/slave sets for large or complex applications.

The Wireless DMX LED Transmitter and Receiver use male and female XLR-3 DMX and has a transmission range of up to 1,000 feet (unobstructed). Each transmitter includes one plug-in adapter to power it and operates on a frequency of 2.4G ISM with a capacity of 126 channels. Up to seven pairs of Wireless DMX Transmitters can be used in the same space without interfering with each other.

• Dimensions:  Transmitter / Receiver: Length = 5.08", Diameter = 0.75"; Antenna: Length =3.70", Diameter = 0.36"
• Environment / IP Rating:  Indoor
• Input Voltage:  5V DC
• Connection Type:  XLR-3 Male or Female
• Working Frequency:  2.400 ~ 2.4835Ghz, ISM, 126 RF CH
• Modulation:  GFSK
• Maximum Transmit Power:  20dBm
• Receiver Sensitivity:  -94dBm
• Transmitting Distance:  1000' effective open area
• Wireless ID's:  7 color-coded ID's:  Red, green, yellow, blue, pink, cyan, white.
• Power Failure Memory:  Yes
• Power Input Connection:  3.5mm DC female jack
• Ambient Temp:  -4° ~104°F (-20° ~50°C)
• Operating Temp:  -4° ~122°F (-20° ~50°C)
• Adapter Input Voltage:  100-240VAC, 0.2A max
• Adapter Input Frequency:  50-60Hz
• Adapter Output Voltage:  5V DC
• Adapter Dimensions:  Length = 0.95", Width = 1.34", Height = 2.17"
• Adapter DC Plug Size:  Inside Diameter:  1.35mm, Outside Diameter: 3.5mm
• Adapter Lead Length:  60"
