Diode LED DI-12V-PS30-160-2009 PuraLight LED Flex Sheet 160 Degree 3000K 12VDC
Diode LED DI-12V-PS30-160-2009 PuraLight LED Flex Sheet 160 Degree 3000K 12VDC is backordered and will ship as soon as it is back in stock.
Description
Description
Diode LED DI-12V-PS30-160-2009 PuraLight LED Flex Sheet 160 Degree 3000K 12VDC

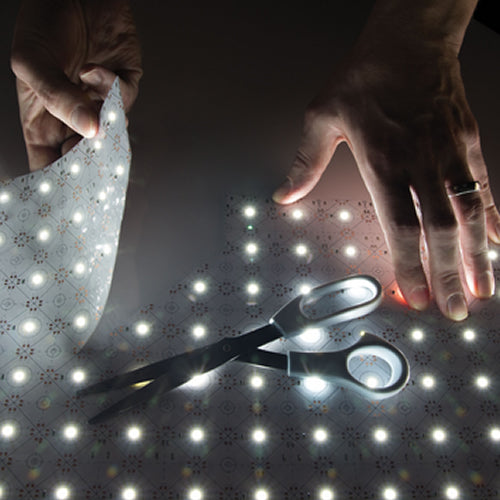

PURALIGHT LED FLex Sheets is a fully modular way to backlight your display and signage. Easily trim to shape using the on-board trim lines and create complex layouts for most applications. With intuitive, plug and play connections; setting up is fast, simple and safe, reducing installation time and expense. Unlike most backlighting or signage modules, PURALIGHT Flex Sheets use only 2 inches of space behind a piece of transparent artwork or advertisement for diffused lighting despite space restrictions. Full sheets of Puralight are also daisy-chain linkable for larger scale projects with optical options available to increase the spread of light.
Specifications:
- Input Voltage: 12VDC
- Wattage: 0.31W per Square, 32W per Sheet
- Lumens: 33 Lm/Square, 3480 Lm/Sheet
- Max Run: 190 Squares
- Cut Points: .66" - 1.3"
- LED Chips: 105 per Sheet
- Color Temperature: 3000K
- Beam Angle: 160°
- CRI: 80+
- Dimmable: Yes
- Field Cuttable: Yes
- Dimensions: 1.3" x 1.3" (Square), 19.78" x 9.25" (Sheet)
- Environment: Indoor / Dry Location / IP20
- Certification: UL Recognized
- Warranty: 5 Year
- Material: UV/IR protected TPU
- Luminous Efficacy3 (lm/w): 92~100
- Mounting: 3M VHB Adhesive backing
- Connections: Connector tabs
- Ambient Temp4: -4 - 122°F (-20 ~ 50°C)
- Operating Temp5: -4 - 176°F (-20 ~ 80°C)
- Spec Sheet
