Diode LED DI-12V-PS60-160-2009 PuraLight LED Flex Sheet 160 Degree 6000K 12VDC

Diode LED DI-12V-PS60-160-2009 PuraLight LED Flex Sheet 160 Degree 6000K 12VDC

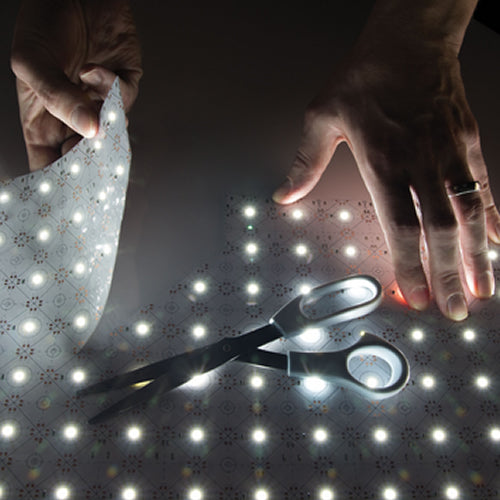

PURALIGHT LED FLex Sheets is a fully modular way to backlight your display and signage. Easily trim to shape using the on-board trim lines and create complex layouts for most applications. With intuitive, plug and play connections; setting up is fast, simple and safe, reducing installation time and expense. Unlike most backlighting or signage modules, PURALIGHT Flex Sheets use only 2 inches of space behind a piece of transparent artwork or advertisement for diffused lighting despite space restrictions. Full sheets of Puralight are also daisy-chain linkable for larger scale projects with optical options available to increase the spread of light.

Specifications:

• Input Voltage: 12VDC
• Wattage: 0.31W per Square, 32W per Sheet
• Lumens: 33 Lm/Square, 3480 Lm/Sheet
• Max Run: 190 Squares
• Cut Points: .66" - 1.3"
• LED Chips: 105 per Sheet
• Color Temperature: 6000K
• Beam Angle: 160°
• CRI: 80+
• Dimmable: Yes
• Field Cuttable: Yes
• Dimensions: 1.3" x 1.3" (Square), 19.78" x 9.25" (Sheet)
• Environment: Indoor / Dry Location / IP20
• Certification: UL Recognized
• Warranty: 5 Year
• Material: UV/IR protected TPU
• Luminous Efficacy3 (lm/w): 92~100
• Mounting: 3M VHB Adhesive backing
• Connections: Connector tabs
• Ambient Temp4: -4 - 122°F (-20 ~ 50°C)
• Operating Temp5: -4 - 176°F (-20 ~ 80°C)
• Spec Sheet
