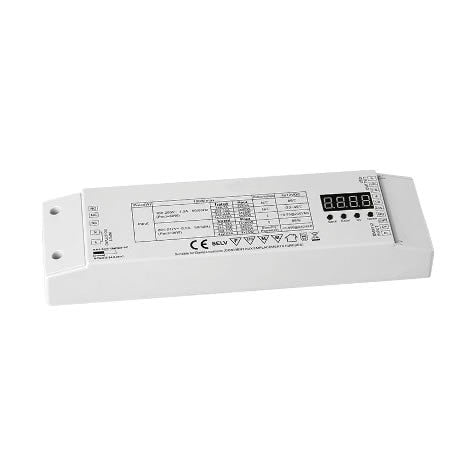

Diode LED DI-DMX-DCO-24V96W-277 80/96 Watt DMX Driver + Decoder Input Voltage 120VAC / 277VAC Output 24V DC
Diode LED DI-DMX-DCO-24V96W-277 80/96 Watt DMX Driver + Decoder Input Voltage 120VAC / 277VAC Output 24V DC
SKU: DI-DMX-DCO-24V96W-277
UPC: 848333019906
Couldn't load pickup availability
![Diode LED DI-DMX-DCO-24V96W-277 80/96 Watt DMX Driver + Decoder Input Voltage 120VAC / 277VAC Output 24V DC](http://gladiatorlighting.com/cdn/shop/files/DI-DMX-DCO-24V96W-277__453601549467582500500__60209.jpg?v=1717665802&width=1445)
- Description
Diode LED DI-DMX-DCO-24V96W-277 80/96 Watt DMX Driver + Decoder Input Voltage 120VAC / 277VAC Output 24V DC
Commercial lighting has never been easier than before. The new DMX Driver combines the operations of a low voltage 24V Class 2 LED driver and a DMX Decoder into a single unit. UL listed for indoor usage, the 4 channel DMX 512 compatible driver meets commercial grade 24V Class 2 requirements for both Color Changing and Single Color applications.
Specifications:
- Input Voltage: 120VAC / 277VAC
- Output Voltage: 24VDC
- Wattage: 80W (120VAC) / 96W (277VAC)
- Max Run: 10 Units
- Dimensions: 2.5 in. x 1.3 in. x 9 in. (W x H x L)
- Environment: Indoor / Dry Location / IP20
- Certification: UL Component Recognized/Listed
- Warranty: 5-Year Warranty
Features:
- Terminal connections
- Integrated DMX 512 decoder
- Commercial and residential applications
- Spec Sheet
