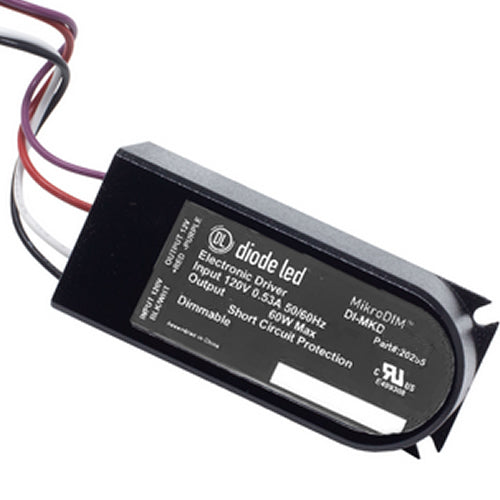

Diode LED DI-MKD-24V60W 60 Watt MikroDim Electronic Dimmable Driver 24V

Diode LED DI-MKD-24V60W 60 Watt MikroDim Electronic Dimmable Driver 24V

Diode LED

Your Price:
Regular price $79.20
Regular price Sale price $79.20
Sale Sold out
Shipping calculated at checkout.

SKU: DI-MKD-24V60W

UPC: 848333026768

Shipping Calculated at Checkout
View full details
  • Description

Diode LED DI-MKD-24V60W 60 Watt MikroDim Electronic Dimmable Driver 24V

The MikroDIM™ 24VDC LED Drivers are an excellent choice to pair with dimmers. These hard-wired drivers are available in multiple voltage and wattage combinations to meet your low-voltage LED lighting needs.

Specifications:

  • Input Voltage: 120VAC
  • Max Load: 120VAC 0.53 50/60Hz
  • Class 2 Certified: Yes
  • Output Voltage: 24VDC
  • Ambient Temperature: -22 - 104°F (-30 - +90°C)
  • Operating Temperature: -4 - 194°F (-20 - +40°C)
  • Minimum Load: None
  • Input Current Full Load: .50A@120VAC
  • Primary Leads: UL 1015 18/2AWG, AC/L (Black), AC/N (White)
  • Secondary Leads: UL 1007 18/2AWG, V+(Red), V-(Blue)
  • Voltage Boost: No
  • Circuit Breakers: Short Circuit Protection
  • Efficiency / Power Factor Full Load: 93% / PF>0.9
  • Environment: Indoor / Damp
  • Working Humidity: 5 - 95% RH non-condensing
  • Housing / Cooling: IP20-rated case with silicone-based potting
  • Dimensions: Length = 3.05", Width = 1.36", Height = 1.03"
  • Warranty: 5 Years
  • Certifications: E499308 cULus R/C 8750, CAN/CSA C22.2 No. 250.13-14. CE Certified.
  • Spec Sheet
