Diode LED  |  SKU: DI-PA-12V24W-CL2-W

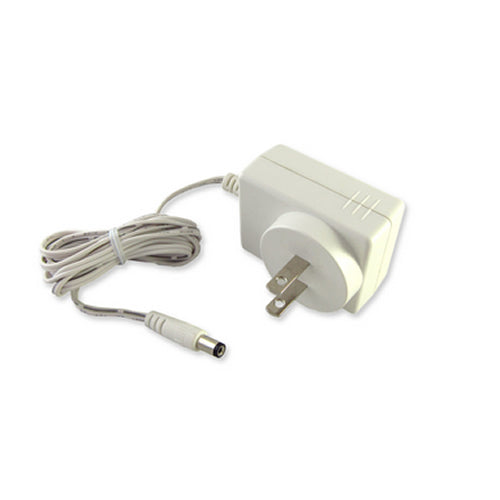

Diode LED DI-PA-12V24W-CL2-W 24 Watt Plug In Class 2 Adapter 12V

$47.25
Shipping calculated at checkout.

Description

Diode LED DI-PA-12V24W-CL2-W 24 Watt Plug In Class 2 Adapter 12V

12V Adapters convert the AC power of homes and businesses into low-voltage LED power supplies. Converting your voltage with a DC Adapter is easy: just plug your LED lights into the 1/4 inch jack of the LED light adapter either directly or using a connectors. An adapter is the right choice if you are installing just a few light fixtures, or want to avoid making a permanent installation with a bigger, hard-wired power driver. Our LED adapter is a plug-and-play LED lighting transformer at its most effortless.

While LED power supplies are rated to accept a maximum rated load, for optimum performance we recommend loading a power supply to no more than 80% of its labeled rating. For example, a 100W power supply should be loaded only to 80W. Optimum performance accounts for various environmental factors like ambient temperature fluctuations and power surges.

Specifications:

  • Input Voltage / Frequency: 100 ~ 240VAC / 50 ~ 60Hz
  • Max Load: 24W / 2.0A
  • Cass 2 Certifed: Yes
  • Output Voltage: 12VDC
  • Ambient Temperature: +32 ~ +104°F (0 ~ +40°C)
  • Operating Temperature: +32 ~ +130°F (0 ~ +52°C)
  • Minimum Load: None
  • Dimmablity: Yes. PWM & RGB(W) dimmers/controls & DMX controls
  • Input Current Full Load: 1.2A@115VAC
  • Primary Connection: Wall Plug Type: 2 Prong NEMA 1-15p Male AC Plug
  • Secondary Leads: Wall Plug Type: 2 Prong NEMA 1-15p Male AC Plug
  • Voltage Boost: No
  • Circuit Breakers: Auto Reset Hiccup
  • Environment: Indoor / Dry Location
  • Working Humidity: 20 ~ 90% RH non-condensing
  • Housing / Cooling: Plastic Class II power unit, no FG connection / free air convection
  • Dimensions: Length = 3.80", Width = 1.75", Height = 1.4"
  • Warranty: 1 Year
  • Certifications: All Models: cULus Listed 1310 Class 2 Power Supply. Level VI Efficiency.
  • Spec Sheet
