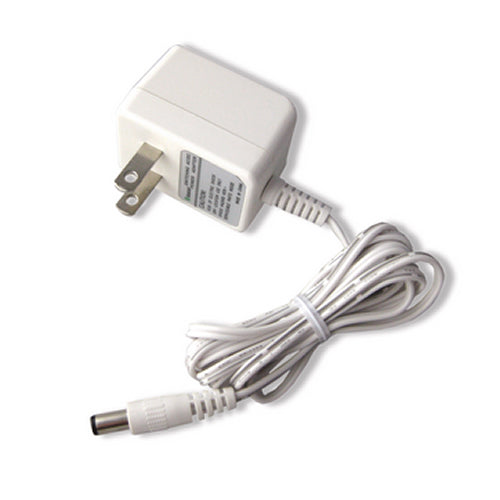

Diode LED DI-PA-12V6W-CL2-W 6 Watt Plug In Adapter 12V

Diode LED DI-PA-12V6W-CL2-W 6 Watt Plug In Adapter 12V

12V Adapters convert the AC power of homes and businesses into low-voltage LED power supplies. Converting your voltage with a DC Adapter is easy: just plug your LED lights into the 1/4 inch jack of the LED light adapter either directly or using a connectors. An adapter is the right choice if you are installing just a few light fixtures, or want to avoid making a permanent installation with a bigger, hard-wired power driver. Our LED adapter is a plug-and-play LED lighting transformer at its most effortless.

While LED power supplies are rated to accept a maximum rated load, for optimum performance we recommend loading a power supply to no more than 80% of its labeled rating. For example, a 100W power supply should be loaded only to 80W. Optimum performance accounts for various environmental factors like ambient temperature fluctuations and power surges.

Specifications:

• Input Voltage / Frequency: 100 ~ 240VAC / 50 ~ 60Hz
• Max Load: 6W / 0.5A
• Cass 2 Certifed: No
• Output Voltage: 12VDC
• Ambient Temperature: +32 ~ +104°F (0 ~ +40°C)
• Operating Temperature: +32 ~ +130°F (0 ~ +52°C)
• Minimum Load: None
• Dimmablity: Yes. PWM & RGB(W) dimmers/controls & DMX controls
• Input Current Full Load: 0.2A@115VAC
• Primary Connection: Wall Plug Type: 2 Prong NEMA 1-15p Male AC Plug
• Secondary Leads: Wall Plug Type: 2 Prong NEMA 1-15p Male AC Plug
• Voltage Boost: No
• Circuit Breakers: Auto Reset Hiccup
• Environment: Indoor / Dry Location
• Working Humidity: 20 ~ 90% RH non-condensing
• Housing / Cooling: Plastic Class II power unit, no FG connection / free air convection
• Dimensions: Length = 1.90", Width = 1.30", Height = 1.30"
• Warranty: 1 Year
• Certifications: All Models: cULus Listed 60950-1 I.T.E Power Supply. L.P.S. Power Supply. Level VI Efficiency.
• Spec Sheet
