Diode LED DI-TB8-60JPR-TTT-1 Tape Light Tape to Tape 8mm Jumper
Diode LED DI-TB8-60JPR-TTT-1 Tape Light Tape to Tape 8mm Jumper
SKU: DI-TB8-60JPR-TTT-1
UPC: 848333031106
Couldn't load pickup availability
![Diode LED DI-TB8-60JPR-TTT-1 Tape Light Tape to Tape 8mm Jumper](http://gladiatorlighting.com/cdn/shop/files/DI-TB8-60JPR-TTT__63292.jpg?v=1717669972&width=1445)
- Description
Diode LED DI-TB8-60JPR-TTT-1 Tape Light Tape to Tape 8mm Jumper

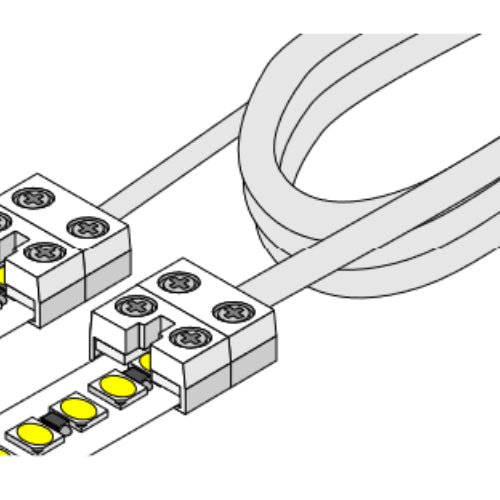

Create easy, fast, and secure tape light connections with the new Tape Light Terminal Block Connector. It features screw down connections and a small form factor for minimal presence in tight spaces.
Specifications:
- Works with 8mm wide tape light only
- Voltage 12 - 24VDC
- Max. Amperage 12V - 5A / 24V - 4A
- Wire Gauge 16 AWG - 20 AWG
- Dimensions 0.63 x 0.5 x 0.23 in. (L x W x H)
- Environment Indoor
- Ambient Temperature -4° - 122°F (-20° - 50°C)
- Warranty 5-Year Warranty
- Spec Sheet
