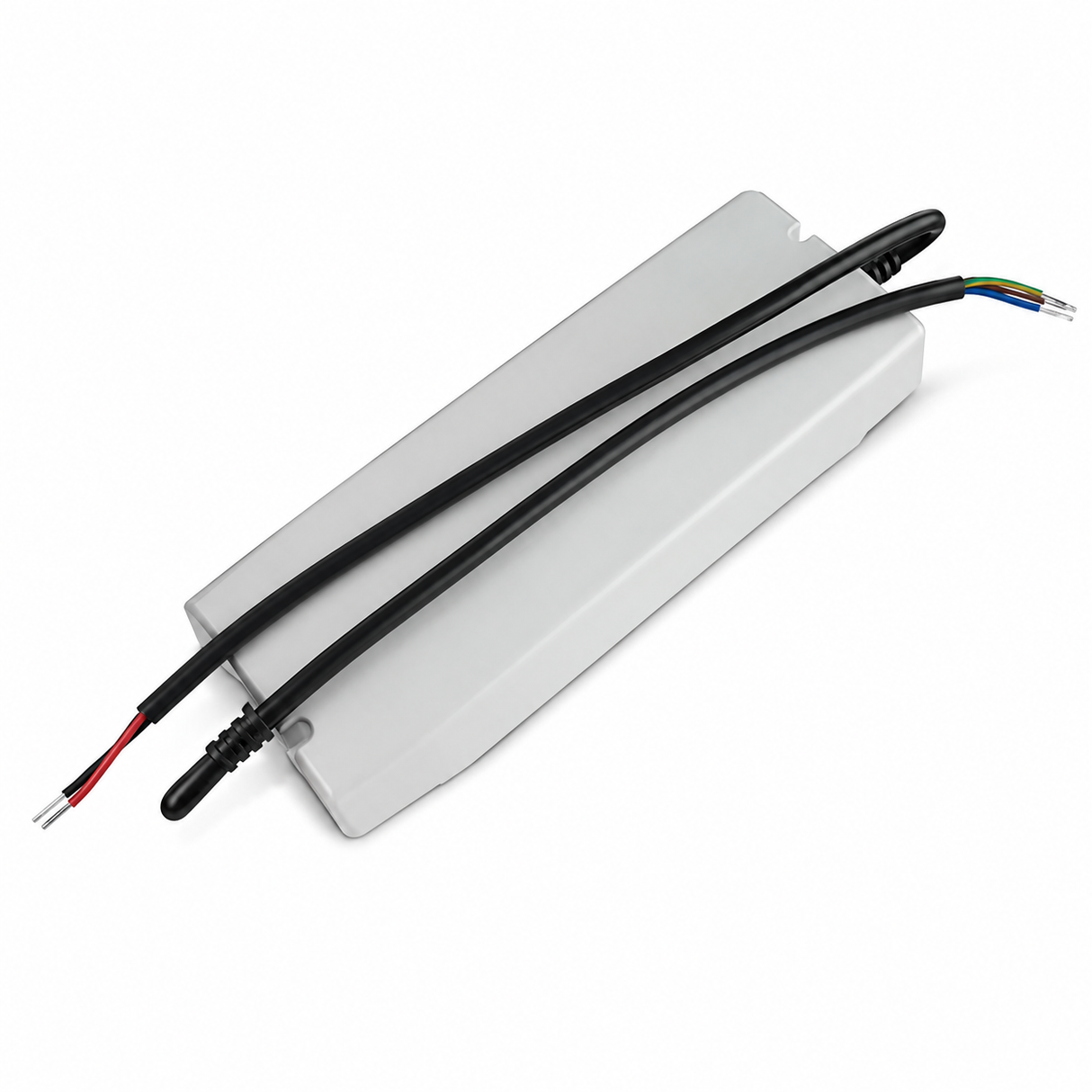

DIODE LED DI-0954-LPS3R Diode 96W Constant Voltage Driver Class 2 LO-PRO Small NEMA3R Wet Location J-Box/Driver Combo 24V

Identification & Application

Diode LED DI-0954-LPS3R 96W Constant Voltage Driver Class 2 LO-PRO® Small NEMA 3R Wet Location J-Box/Driver Combo 24VDC

The Diode LED DI-0954-LPS3R is a commercial-grade 24VDC constant voltage LED driver packaged in a LO-PRO® Small NEMA 3R junction box, providing a complete UL Listed Class 2 low-voltage power solution for indoor and outdoor lighting installations. Designed for dependable operation, it delivers up to 96 watts of regulated 24VDC output for LED tape lights, architectural lighting, signage, under-cabinet lighting, and other low-voltage LED systems.

This driver features integrated protection against short circuits, over-current, over-voltage, and over-temperature conditions to maximize system reliability. The free-air convection cooling design operates without a fan, while PWM compatibility allows use with compatible PWM dimmers, RGB(W) controls, and DMX lighting control systems for smooth dimming and color control.

Ideal for residential, commercial, hospitality, retail, and architectural lighting projects, the DI-0954-LPS3R combines the driver and weather-resistant LO-PRO® junction box into a compact, installer-friendly package suitable for wet-location installations where a protected low-voltage power source is required.

Technical Performance Specifications
