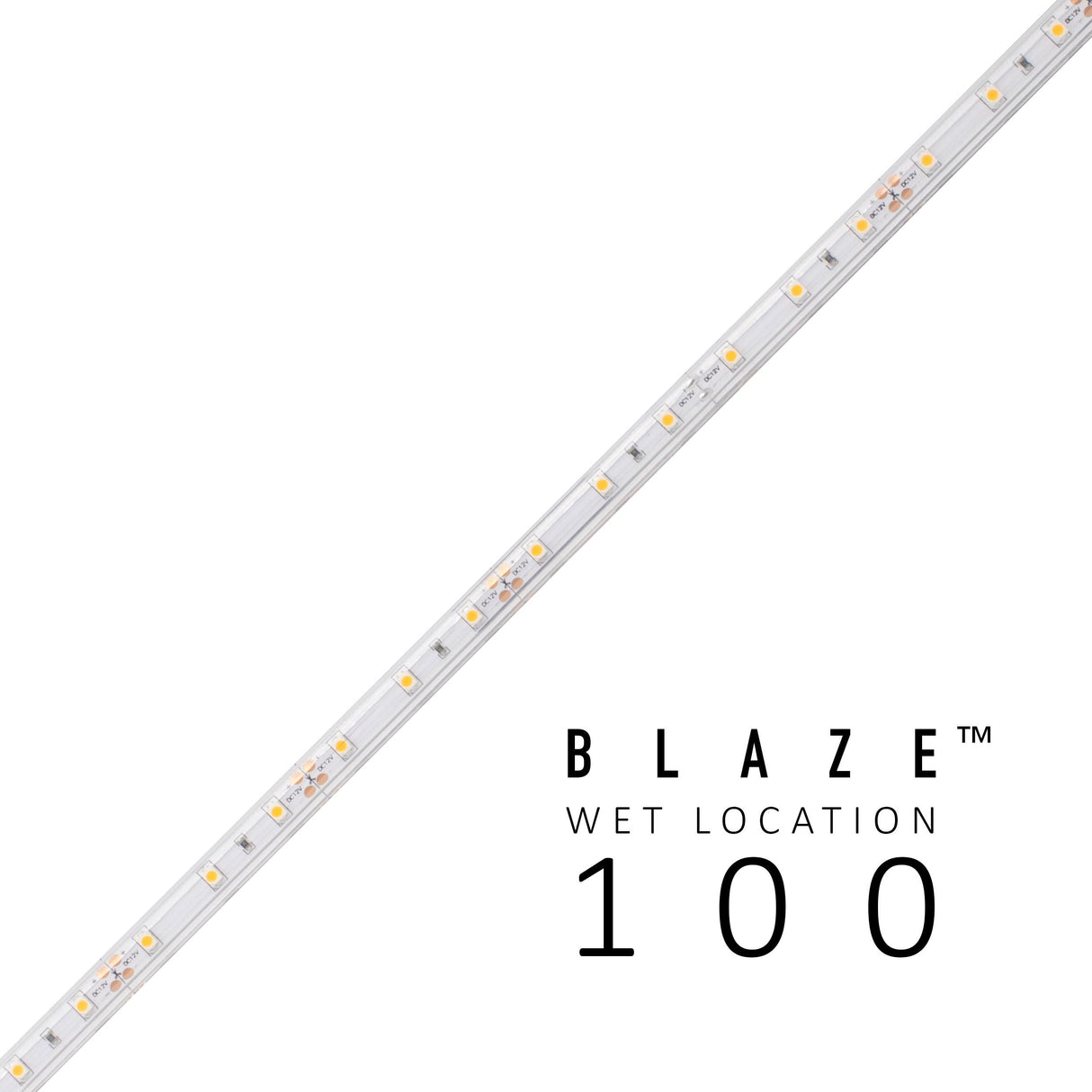

Diode LED DI-12V-BLBSC1-30-W100 100ft Spool Blaze 100+ Lumen Per Foot Wet Location LED Tape Light 3000K 12V DC

Identification & Application

The Diode LED DI-12V-BLBSC1-30-W100 is a LED Tape Light designed for low-voltage linear lighting installations requiring consistent output and flexible field layout. This Blaze Wet Location tape light operates on a 24VDC constant voltage system and is configured in the submitted title at 3000K. The 8mm tape format supports installation in channels, cabinetry, shelving, coves, and architectural lighting features. The published performance for this configuration is 100+ lm/ft with 1.46W/ft consumption. It is intended for outdoor and wet location use with the published IP65 environmental rating.

Technical Performance Specifications

• Brand: Diode LED
• SKU/MPN: DI-12V-BLBSC1-30-W100
• Product Type: LED Tape Light
• Installation Type: Surface Mount
• Electrical: 24VDC constant voltage input, 1.46W/ft, dimmable
• Optical: 3000K color temperature, 100+ lm/ft, CRI 90
• Mechanical: Blaze Wet Location flexible LED tape light, 8mm tape width
• Environmental: Outdoor / Wet Location (IP65)
• Dimensions: 0.31 x 0.16 in. (W x H)
• Lifecycle: TM-21 (LM-80) >50,000 hr, max run 55 ft
• Warranty: 7 Year Limited
• Documentation: See manufacturer spec sheet for additional details

Application Guidance

Use this tape light where a compact linear source is required and match the connected driver to the published 24VDC load. Observe the 3.93 in. cut interval and the 55 ft maximum run limit when laying out the installation. The warm white output is suited to application-specific ambient, display, task, or accent lighting. For best finish and thermal management, pair the tape with compatible mounting accessories or channel systems where appropriate.
