DIODE LED DI-12V-BLC-GN-100 100ft Spool Green Blaze Colors LED Tape Light 12V DC

$2,233.13
Shipping calculated at checkout.
% BULK SAVINGS Applied at checkout
Spend $100+ 5% OFF
Spend $500+ 7% OFF
Spend $1000+ 10% OFF

Specifications & Downloads

Spec Sheet View Spec Sheet
Barcode: 848333025754

Description

Identification & Application

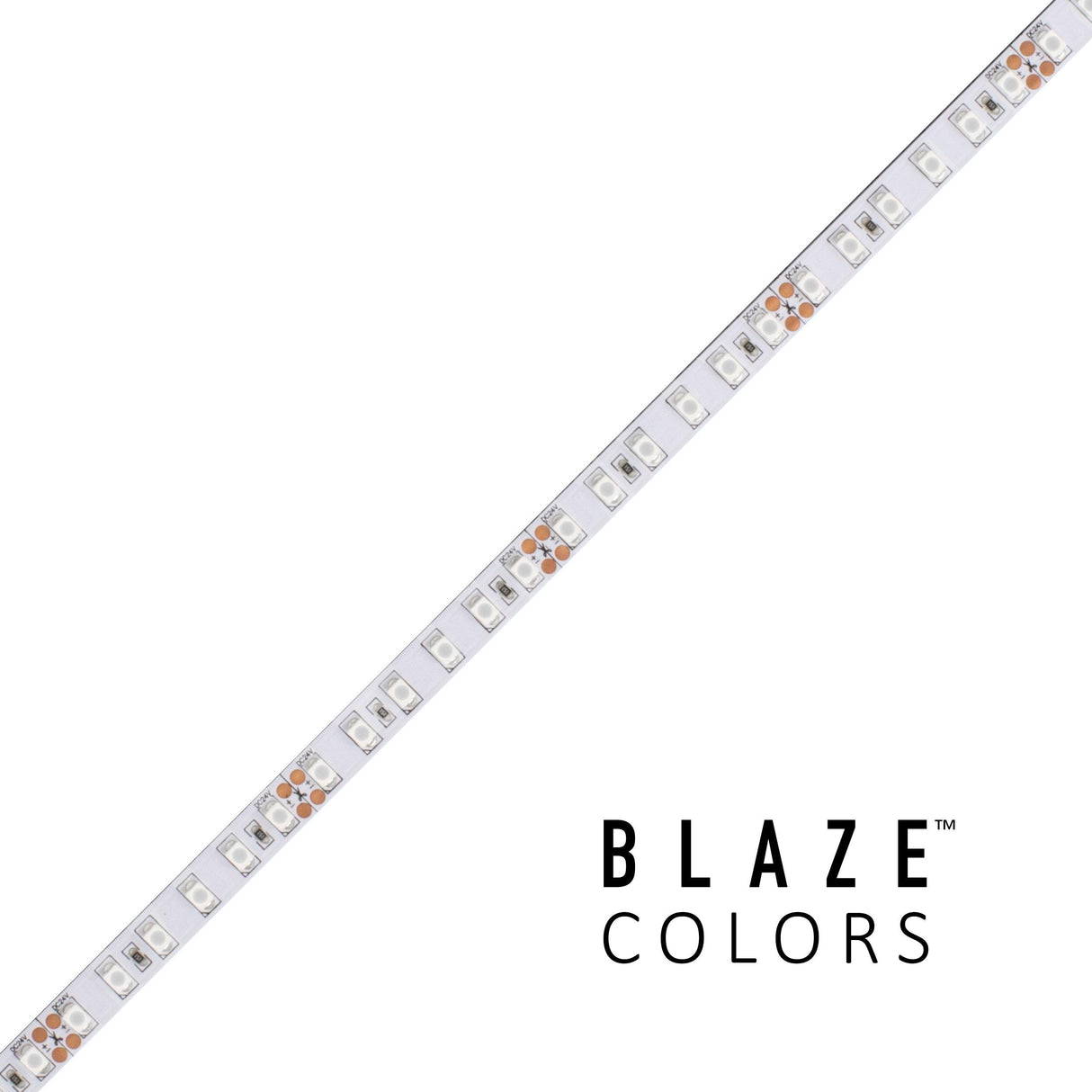

Diode LED DI-12V-BLC-GN-100 100ft Spool Green Blaze Colors LED Tape Light 12V DC

The Diode LED BLAZE™ Colors is a solid-color LED tape light designed for display, signage, cove, retail, and everyday accent lighting applications.

This Green configuration delivers 300 lm/ft. output while consuming 3W/ft. It operates from 12VDC and is dimmable when paired with compatible Diode LED drivers and controls.

Supplied in a 100 ft. length, the tape has 1 in. cut points, supports a maximum run length of 20 ft., and uses a compact 0.31 in. W × 0.10 in. H tape profile.

Technical Performance Specifications

Brand: Diode LED
Manufacturer Part Number (MPN): DI-12V-BLC-GN-100
Series: BLAZE™ Colors
Product Type: Solid Color LED Tape Light
Lighting Technology: LED
Length: 100 ft.
Input Voltage: 12VDC
Power Consumption: 3W/ft.
Color: Green
Lumens: 300 lm/ft.
Dimming: Yes
Maximum Run Length: 20 ft.
Cut Points: 1 in.
LED Density: 36 LEDs/ft.
Dimensions: 0.31 in. W × 0.10 in. H
Lead Wire: 2.5 in. Bare Lead 20/2 AWG UL 2464 Wire with Strain Relief
Environment: Indoor / Damp Location (IP20)
Certifications: UL Listed 2108
Warranty: 10 Year Limited Warranty
Documentation: See manufacturer specification sheet.
