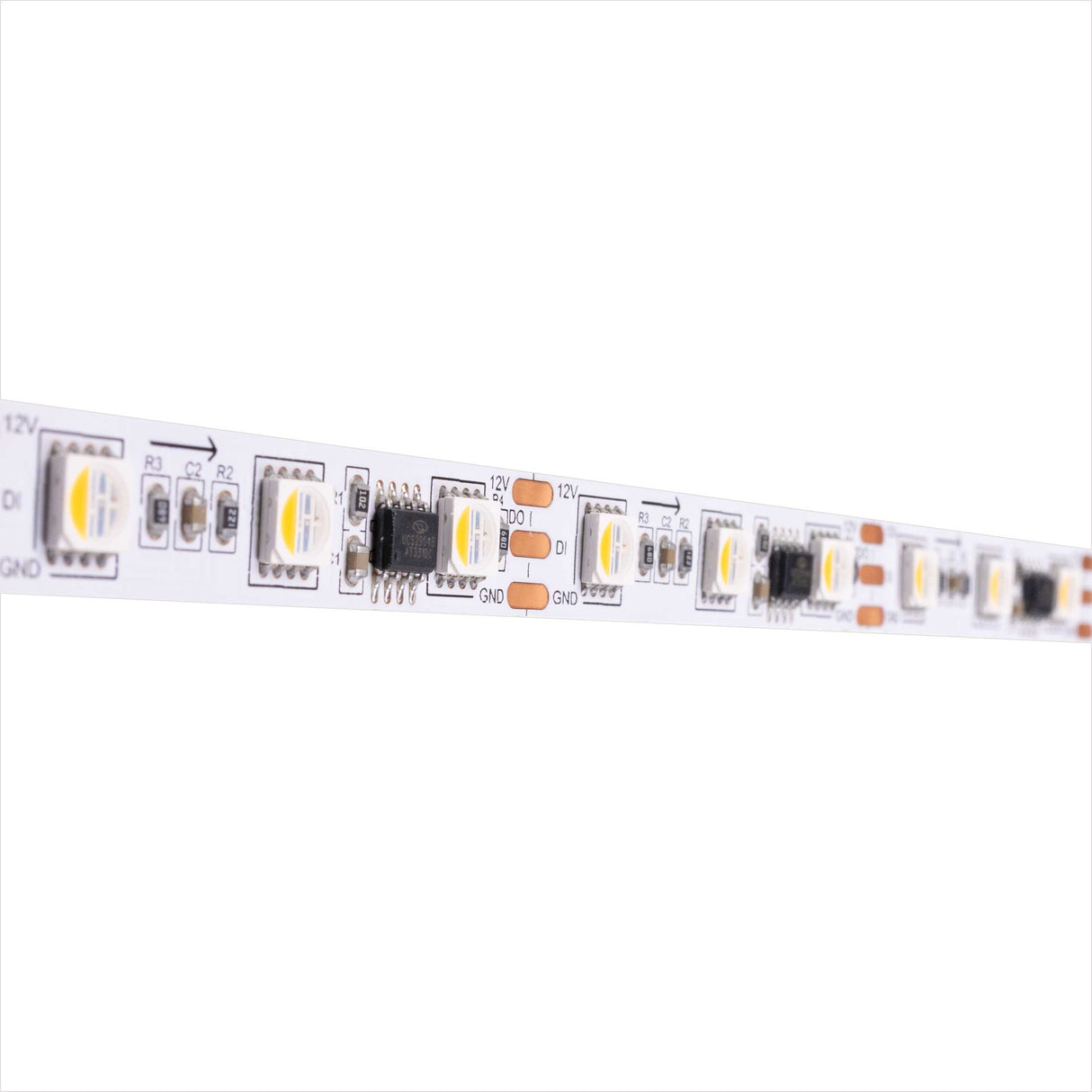

DIODE LED DI-12V-DRGBW-50-PIX-3LED-016 16.4ft Spool Dazzle 3-LED Pixel RGBW-5000K LED Tape Light 12V

Identification & Application

Diode LED DI-12V-DRGBW-50-PIX-3LED-016 16.4ft Spool DAZZLE® 3-LED Pixel RGBW-5000K LED Tape Light 12V

The Diode LED DI-12V-DRGBW-50-PIX-3LED-016 is a premium DAZZLE® 12V RGBW pixel LED tape light engineered to create dynamic lighting effects including chasing, flowing, animated, and individually addressable pixel patterns. Featuring three LEDs per RGBW pixel, this tape light delivers brilliant color performance along with a dedicated 5000K white channel for crisp task lighting and architectural illumination.

Designed with the UCS2904B integrated control chip, this 16.4-foot spool provides precise pixel-level control while reducing data requirements and supporting longer run lengths per universe. The flexible 10mm-wide tape can be installed in a wide variety of Diode LED aluminum channels, making it ideal for architectural coves, hospitality environments, entertainment venues, retail displays, accent lighting, and custom lighting installations.

Operating from a 12VDC constant voltage power source, the tape light consumes just 5.8 watts per foot while producing up to 220 lumens per foot with all channels illuminated. It is fully dimmable through compatible pixel control systems and is UL Listed for indoor damp location applications, delivering dependable performance backed by a 7-year limited warranty.

Technical Performance Specifications
