DIODE LED DI-12V-P2-TB50 PURALIGHT 2 TRIOBRIGHT Wide Beam LED Light 40 Module Strand 5000K 80+CRI 12V

Name: Diode LED DI-12V-P2-TB50 PURALIGHT 2 TRIOBRIGHT Wide Beam LED Light 40 Module Strand 5000K 80+CRI 12V
Brand: Diode LED
SKU: DI-12V-P2-TB50
Price: 186.3 USD
Availability: InStock

$186.30

Shipping calculated at checkout.

Product Information

SKU

DI-12V-P2-TB50

Barcode 848333010941

PRODUCT SPEC SHEET DOWNLOAD

View Spec Sheet

Description

Identification & Application

Diode LED DI-12V-P2-TB50 PURALIGHT 2 TRIOBRIGHT Wide Beam LED Light 40 Module Strand 5000K 80+CRI 12V

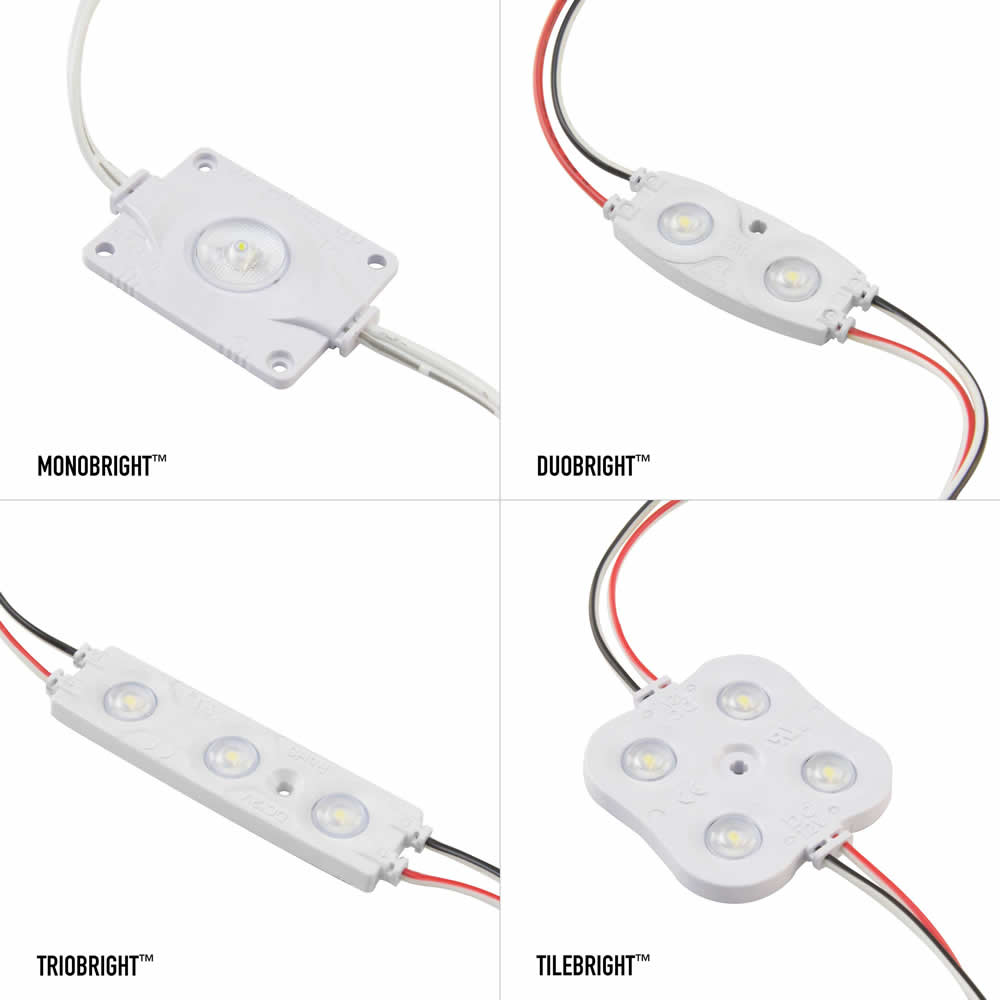

The Diode LED PURALIGHT® 2 TRIOBRIGHT™ module is a 12V water-resistant LED light module designed for channel letters, signage, halo illumination, backlighting, and architectural accents.

This TRIOBRIGHT LED Light Module configuration uses 3 LED chips per module and delivers 78 lm (3000K); 94 lm (4000K); 87 lm (5000K); 88 lm (6200K); 87 lm (9000K); 85 lm (11000K); 45 lm color modules. It is dimmable, wide beam, IP65 rated, and designed to reduce hot spots in backlighting applications.

The module strand is suitable for indoor/outdoor wet-location installations with 3M adhesive tape and screw-mount options as specified by the manufacturer.

Technical Performance Specifications

Brand: Diode LED

Manufacturer Part Number (MPN): DI-12V-P2-TB50

Series: PURALIGHT® 2 TRIOBRIGHT™

Product Type: TRIOBRIGHT LED Light Module

Lighting Technology: LED

Input Voltage: 12VDC

LED Chips per Module: 3

Color Temperature / Color Options: 3000K / 4000K / 5000K / 6200K / 9000K / 11000K / Yellow / Red / Green / Blue

Lumens per Module: 78 lm (3000K); 94 lm (4000K); 87 lm (5000K); 88 lm (6200K); 87 lm (9000K); 85 lm (11000K); 45 lm color modules

CRI: 84

Wattage: 1.08W per module / 43.2W per spool

Maximum Run / Spool Length: 40 modules / ~20.7 ft.

Dimensions: 73 × 19 × 5.5 mm / 2.88 × 0.75 × 0.22 in.

Beam Angle: 160°

Dimming: Yes

Mounting: 3M™ Adhesive Tape; screw mountable

Environment: Outdoor / Wet Location (IP65)

Ambient Temperature: -13°F to 140°F (-25°C to 60°C)

Operating Temperature: -13°F to 140°F (-25°C to 60°C)

Warranty: 5 Year Warranty

Documentation: See manufacturer specification sheet.
