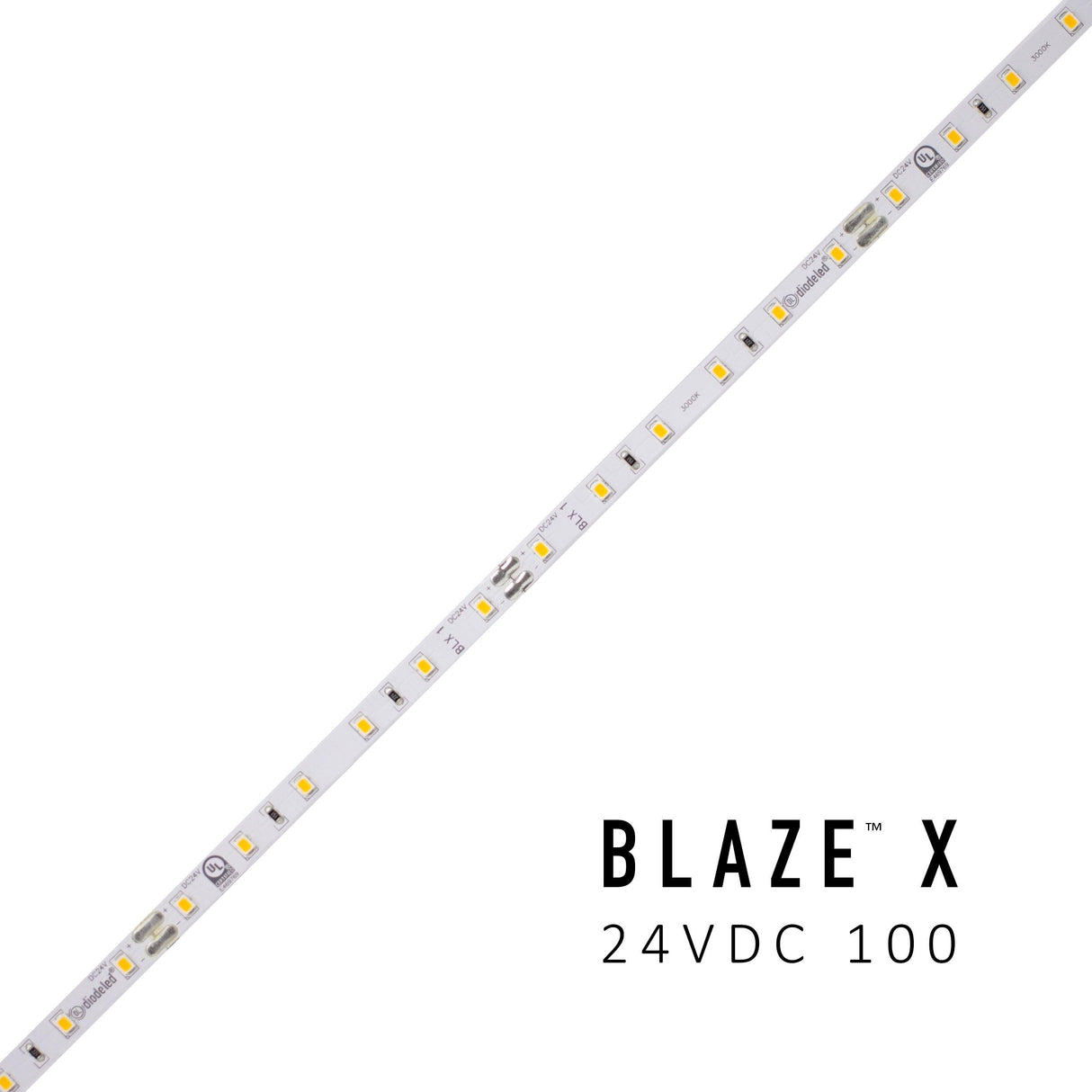

DIODE LED DI-24V-BLX1-30-400 400ft Spool Blaze X 100+ Lumen Per Foot LED Tape Light 3000K 24V DC

Name: Diode LED DI-24V-BLX1-30-400 400ft Spool Blaze X 100+ Lumen Per Foot LED Tape Light 3000K 24V DC
Brand: Diode LED
SKU: DI-24V-BLX1-30-400
Price: 4592.7 USD
Availability: InStock

$4,592.70

Shipping calculated at checkout.

Specifications & Downloads

View Spec Sheet

Barcode: 848333009624

Description

Identification & Application

Diode LED DI-24V-BLX1-30-400 400ft Spool Blaze X 100+ Lumen Per Foot LED Tape Light 3000K 24V DC

The Diode LED BLAZE™ X is a 24V LED tape light engineered for dependable linear lighting performance. It uses a heavy-duty copper PCB and is designed for everyday professional lighting installations.

This 3000K 24V-BLX1 configuration delivers 126 lm/ft. output while consuming 1.54W/ft. It features 95+ CRI, dimmable operation, and manufacturer-listed cut points of 3.93 in.

Supplied in a 400 ft. length, the tape supports a maximum run length of 70 ft., includes 18 LEDs/ft., and is certified to UL Listed 2108.

Technical Performance Specifications

Brand: Diode LED

Manufacturer Part Number (MPN): DI-24V-BLX1-30-400

Series: BLAZE™ X

Product Type: LED Tape Light

Lighting Technology: LED

Length: 400 ft.

Input Voltage: 24VDC

Power Consumption: 1.54W/ft.

Color Temperature: 3000K

Lumens: 126 lm/ft.

CRI: 95+

Dimming: Yes

Maximum Run Length: 70 ft.

Cut Points: 3.93 in.

LED Density: 18/ft.

LED Chip Type: 2835

Dimensions: 0.31 in. W × 0.10 in. H

Lead Wire: 36 in. Bare Lead 20/2 AWG UL 2464 Wire with Strain Relief

Rated Life: >50,000 Hours (TM-21 / LM-80)

Environment: Indoor / Damp Location (IP20)

Color Rendering: 95+ CRI / 90+ R9

Certifications: UL Listed 2108

Warranty: 12 Year Limited Warranty

Documentation: See manufacturer specification sheet.
