DIODE LED DI-24V-DRGB-PIX-1LED-016 16.4ft Spool Dazzle 1-LED Pixel RGB LED Tape Light 24V

$273.60
Shipping calculated at checkout.
% BULK SAVINGS Applied at checkout
Spend $100+ 5% OFF
Spend $500+ 7% OFF
Spend $1000+ 10% OFF

Product Information

SKU
DI-24V-DRGB-PIX-1LED-016
Barcode 848333050367

PRODUCT SPEC SHEET DOWNLOAD

Spec Sheet View Spec Sheet

Description

Identification & Application

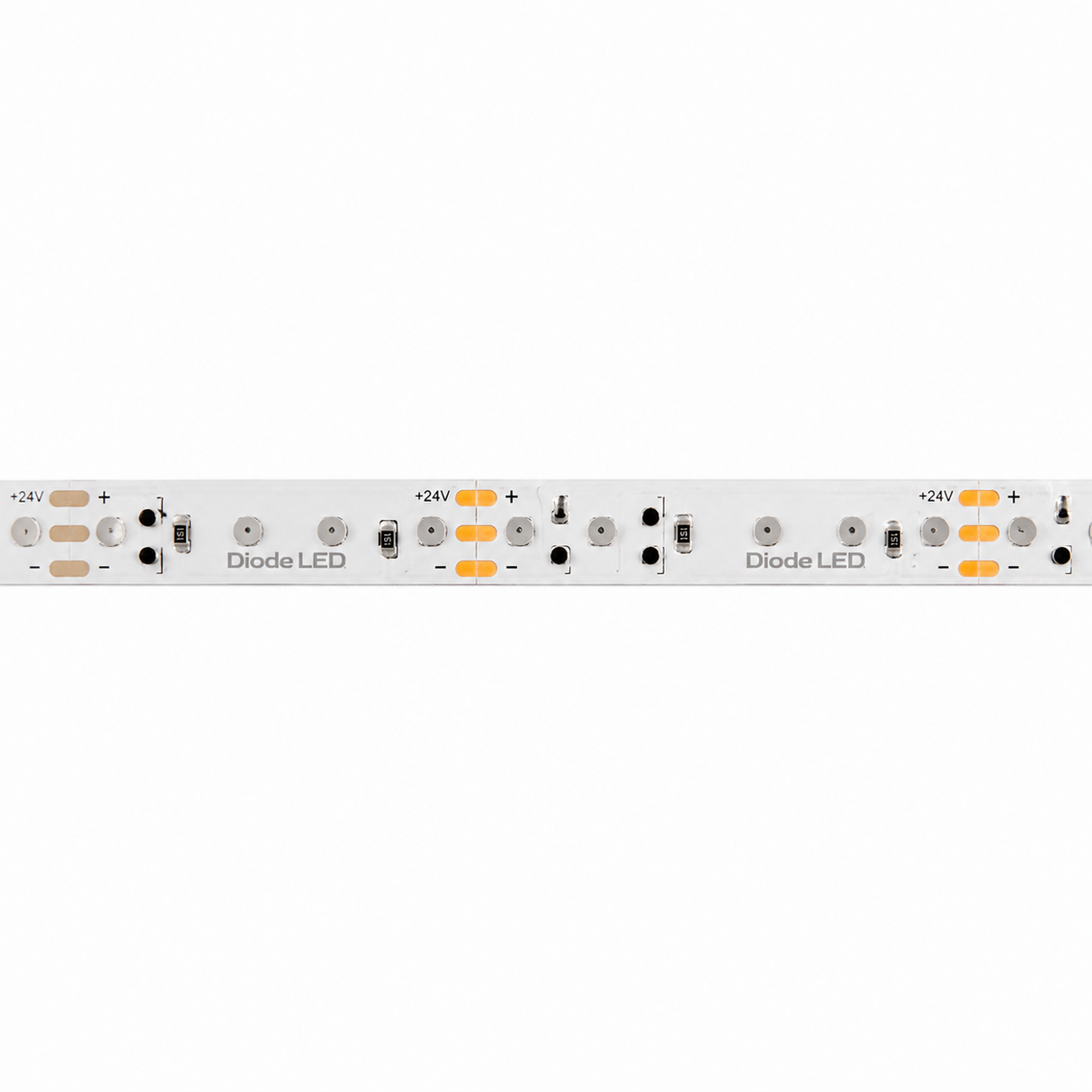

Diode LED DI-24V-DRGB-PIX-1LED-016 16.4ft DAZZLE® 1-LED Pixel RGB LED Tape Light 24V DC

The Diode LED DI-24V-DRGB-PIX-1LED-016 is a premium DAZZLE® Pixel RGB LED Tape Light designed for advanced architectural and entertainment lighting applications. Utilizing individually addressable 1-LED pixels, this 24V DC tape light creates dynamic chasing effects, animated lighting sequences, and vibrant full-color displays with exceptional precision and control.

Engineered for sophisticated lighting installations, the flexible 16.4-foot tape is powered by the SK6851N integrated pixel control chipset and is compatible with professional pixel control systems. Its individually addressable LEDs allow each pixel to display independent colors and animations, making it ideal for hospitality venues, retail displays, themed environments, architectural accents, entertainment spaces, and custom lighting installations.

Featuring smooth dimming, a high 90+ CRI, field-cuttable construction, and compatibility with Diode LED channels, drivers, and Advatek pixel controllers, this professional-grade RGB tape light delivers exceptional reliability with a rated life exceeding 50,000 hours and is backed by a 7-year limited warranty.

Technical Performance Specifications

Brand Diode LED
Manufacturer Part Number DI-24V-DRGB-PIX-1LED-016
Series DAZZLE® Pixel RGB
Product Type Individually Addressable RGB LED Tape Light
Input Voltage 24V DC Constant Voltage
Length 16.4 ft. (5 m)
Power Consumption 4.3W per Foot
Light Color RGB Full Color
Pixel Configuration 1 LED Per Pixel (Individually Addressable)
Control IC SK6851N
Lumen Output Red: 26 lm/ft., Green: 88 lm/ft., Blue: 22 lm/ft.
CRI 90+
Dimmable Yes
LED Density 36 LEDs per Foot
LED Chip Type SK6851N / 5050
Cutting Interval 1.96 in. (50 mm)
Maximum Run Length 16.4 ft.
Dimensions 0.39 x 0.10 in. (W x H)
Lead Wires 36 in. White Bare Lead 20/3 AWG UL 2464 Wire with Strain Relief (Input & Output)
Environment Indoor / Damp Location (IP20)
Rated Life 50,000+ Hours (TM-21 / LM-80)
Certification UL Listed 2108, Closet Rated, Field Cuttable
Compatible Controllers Advatek PixLite Pixel Controllers and Compatible Pixel Control Systems
Compatible Accessories Diode LED Channels, Constant Voltage Drivers, Connectors, Mounting Accessories, and Diffusion Lenses
Warranty 7-Year Limited Warranty
Applications Dynamic Architectural Lighting, Pixel Mapping, Entertainment Lighting, Hospitality, Retail Displays, Stage Lighting, Themed Environments, Media Features, Signage, and Custom RGB Animation Installations
