DIODE LED DI-24V-PS-RGBW-120-2412 PuraLight LED Flex 24"x12" Sheet 120 Degree RGBW 24V

$455.85
Shipping calculated at checkout.
% BULK SAVINGS Applied at checkout
Spend $100+ 5% OFF
Spend $500+ 7% OFF
Spend $1000+ 10% OFF

Specifications & Downloads

Spec Sheet View Spec Sheet
Barcode: 848333040573

Description

Identification & Application

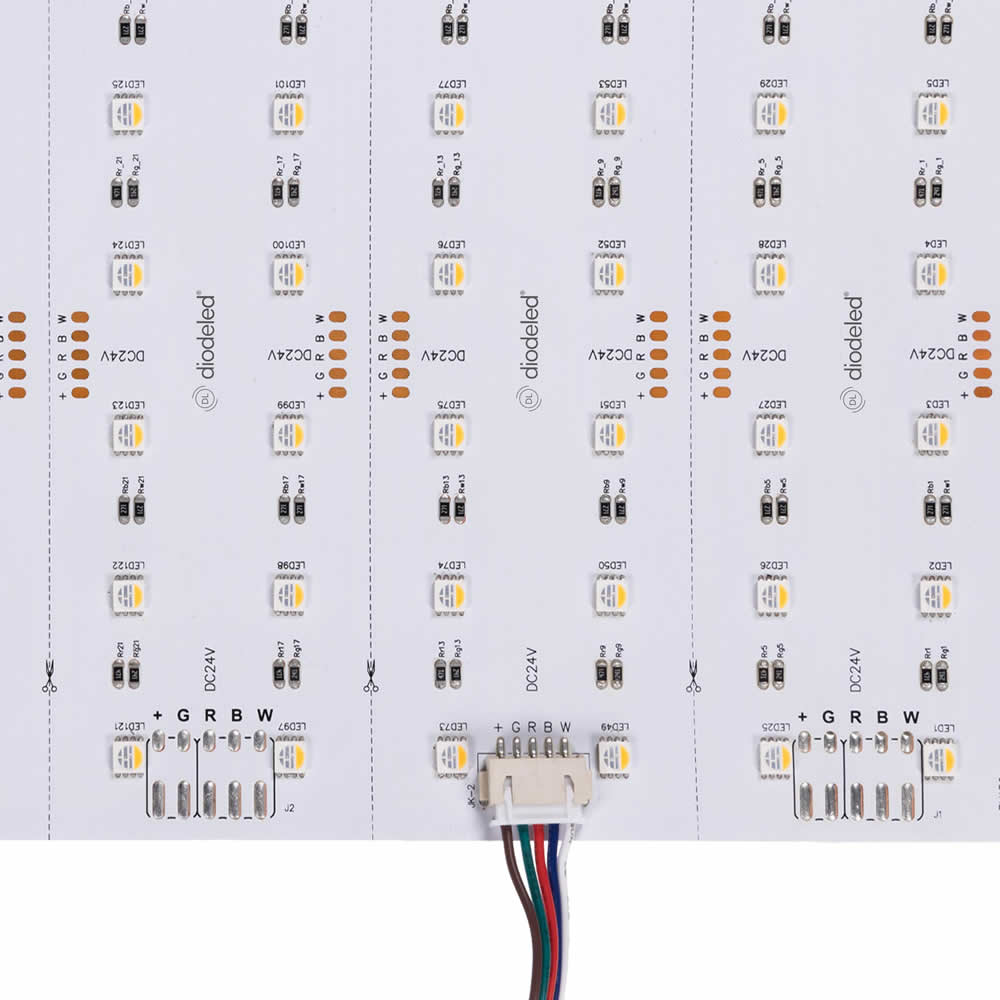

Diode LED DI-24V-PS-RGBW-120-2412 PuraLight LED Flex 24"x12" Sheet 120 Degree RGBW 24V

The Diode LED PURALIGHT® FLEX RGBW sheet is a flexible, field-cuttable LED array designed for signage, backlighting, exhibitions, events, and display illumination. This 24V sheet provides rgbw with 3000k white output for dynamic color and white-light applications.

The sheet operates on 24VDC, consumes 60W, and produces Red: 630 lm; Green: 1,300 lm; Blue: 280 lm; 3000K: 1,620 lm; All on: 3,750 lm. It features 80+ CRI, field cut points of 6 in. × 2 in., and a maximum run of 1 Sheet.

The product is rated for indoor/damp-location IP20 installations and is intended for use with compatible Diode LED drivers, controls, and power distribution accessories.

Technical Performance Specifications

Brand: Diode LED
Manufacturer Part Number (MPN): DI-24V-PS-RGBW-120-2412
Series: PURALIGHT® FLEX RGBW
Product Type: LED Light Flex Sheet
Lighting Technology: LED
Input Voltage: 24VDC
Wattage: 60W
Color / Output: RGBW with 3000K White
Lumens: Red: 630 lm; Green: 1,300 lm; Blue: 280 lm; 3000K: 1,620 lm; All on: 3,750 lm
CRI: 80+
Cut Points: 6 in. × 2 in.
Maximum Run: 1 Sheet
Dimensions: 24 in. × 12 in. × 0.25 in. (L × W × H)
Ambient Temperature: -4°F to 122°F (-20°C to 50°C)
Operating Temperature: -4°F to 176°F (-20°C to 80°C)
Environment: Indoor / Damp Location (IP20)
Chip Type: 5050
Certification: UL Listed 2108
Warranty: 5 Year Limited Warranty
Documentation: See manufacturer specification sheet.
