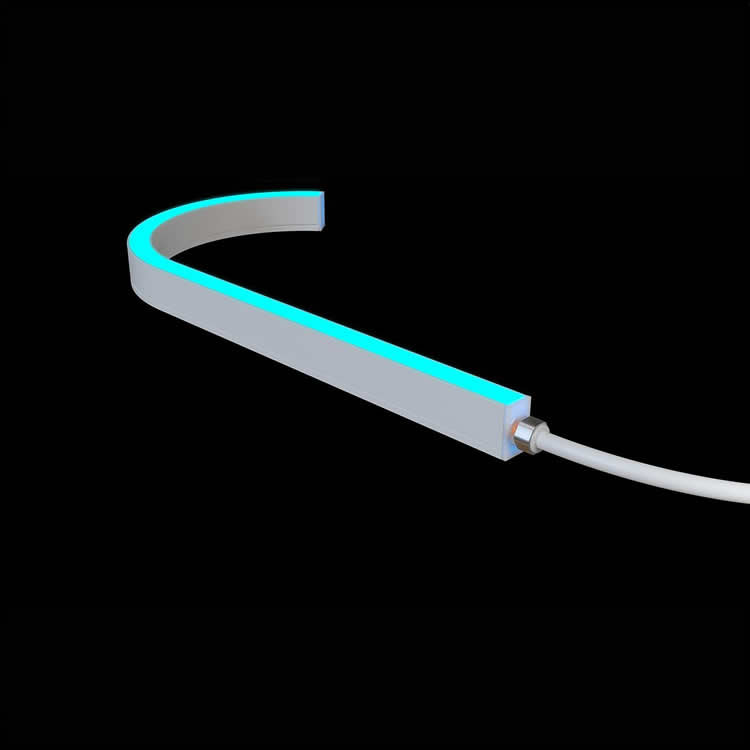

DIODE LED DI-24V-SE-LIN-RGBW-016 16.4ft 4.5W/ft LINAIRE Flex Linear LED Side Bend RGBW 24V
Specifications & Downloads
Diode LED DI-24V-SE-LIN-RGBW-016 16.4ft 4.5W/ft LINAIRE Flex Linear...
Description
Description
Identification & Application
Diode LED DI-24V-SE-LIN-RGBW-016 16.4ft 4.5W/ft LINAIRE Flex Linear LED Side Bend RGBW 24V
The Diode LED LINAIRE® Flex Side Bend RGBW is a 24V wet-location RGBW linear light designed for dot-free architectural color-changing applications. This 16.4-foot model provides full-color RGBW output in a flexible profile for indoor and outdoor installations.
This RGBW model consumes 4.5 watts per foot and delivers All: 75 lm/ft.; 3000K: 27 lm/ft.; Red: 10 lm/ft.; Green: 34 lm/ft.; Blue: 7 lm/ft. It is dimmable, field cuttable every 1.96 in., and supports a maximum run of 16.4 feet per dedicated power feed.
The fixture is rated for outdoor/wet-location use, uses 5050 LEDs, includes 96-inch white bare lead wires, and supports factory assembly or field adjustable termination according to the manufacturer specification sheet.
Technical Performance Specifications
