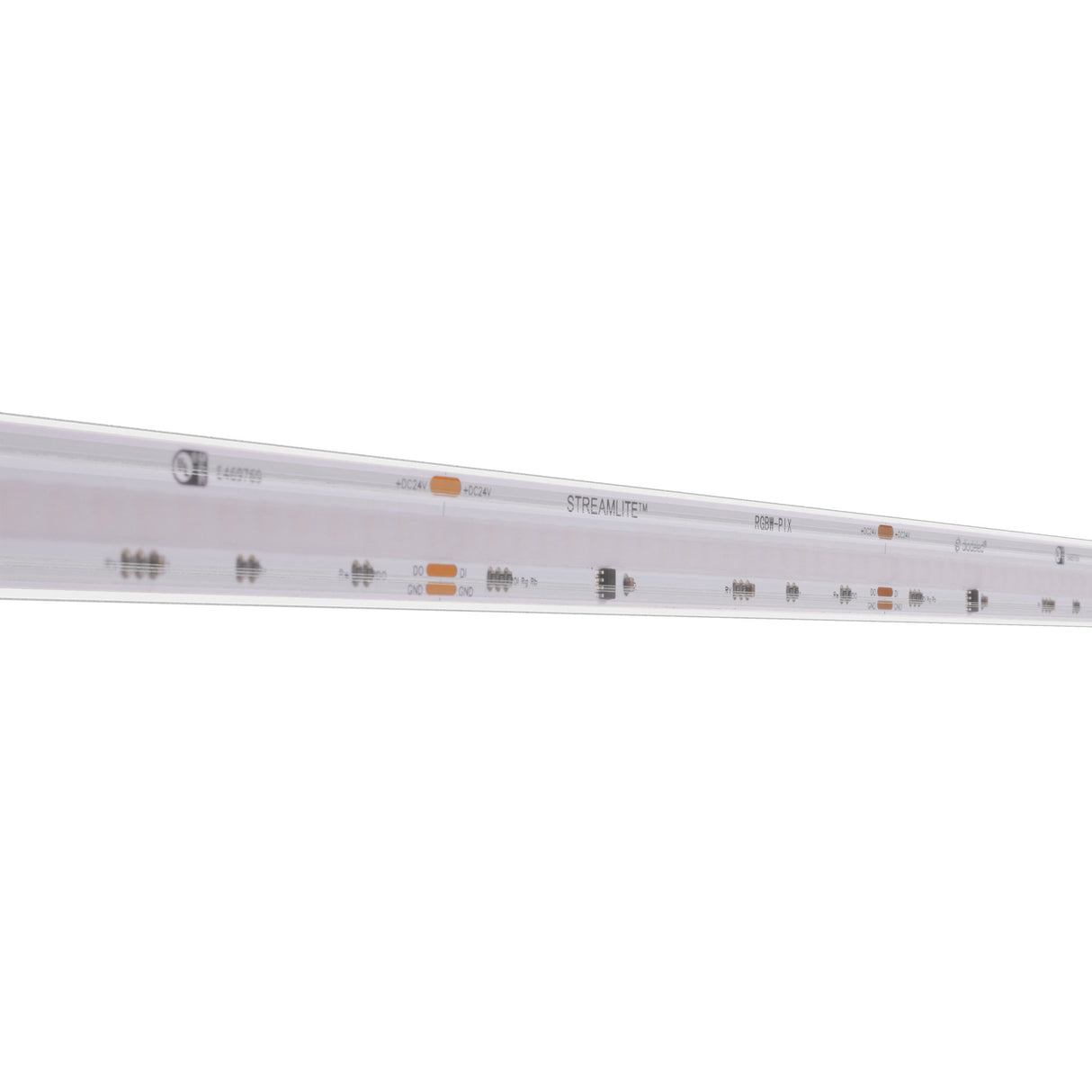

DIODE LED DI-24V-STMLT-RGBW-50-PIX-W016 16.4ft 4.5W/ft Streamlite Pixel RGBW LED Tape Light Wet Location 24V

Identification & Application

Diode LED DI-24V-STMLT-RGBW-50-PIX-W016 16.4ft 4.5W/ft STREAMLITE™ Pixel RGBW+5000K LED Tape Light Wet Location 24V DC

The Diode LED DI-24V-STMLT-RGBW-50-PIX-W016 is a professional-grade STREAMLITE™ Pixel RGBW wet-location LED tape light designed to create smooth, dot-free linear illumination with dynamic pixel effects. It combines full-color RGB output with a dedicated 5000K white channel, allowing compatible pixel control systems to produce chasing patterns, animated transitions, saturated colors, and functional white illumination.

Built for outdoor and wet-location applications, this flexible 16.4-foot tape light features an IP65-rated diffused housing that protects the LEDs while maintaining a continuous line of light. The WS2814F control chipset enables programmable RGBW pixel effects for architectural accents, hospitality environments, entertainment venues, exterior features, signage, displays, and custom color-changing installations.

Operating on 24V DC constant voltage, the tape consumes 4.5 watts per foot and supports runs up to 20 feet. It is dimmable, field-cuttable every 3.93 inches, and delivers up to 240 lumens per foot with all channels illuminated. The 90+ CRI, 50,000-hour rated life, UL Listed construction, and 7-year limited warranty provide dependable performance for demanding commercial installations.

Technical Performance Specifications
