DIODE LED DI-24V-TE-LIN-WD3018-016 16.4ft 4.6W/ft LINAIRE Flex LED Light Top Bend Warm Dim 3000K-1800K 24V

Identification & Application

Diode LED DI-24V-TE-LIN-WD3018-016 16.4ft 4.6W/ft LINAIRE Flex LED Light Top Bend Warm Dim 3000K-1800K 24V

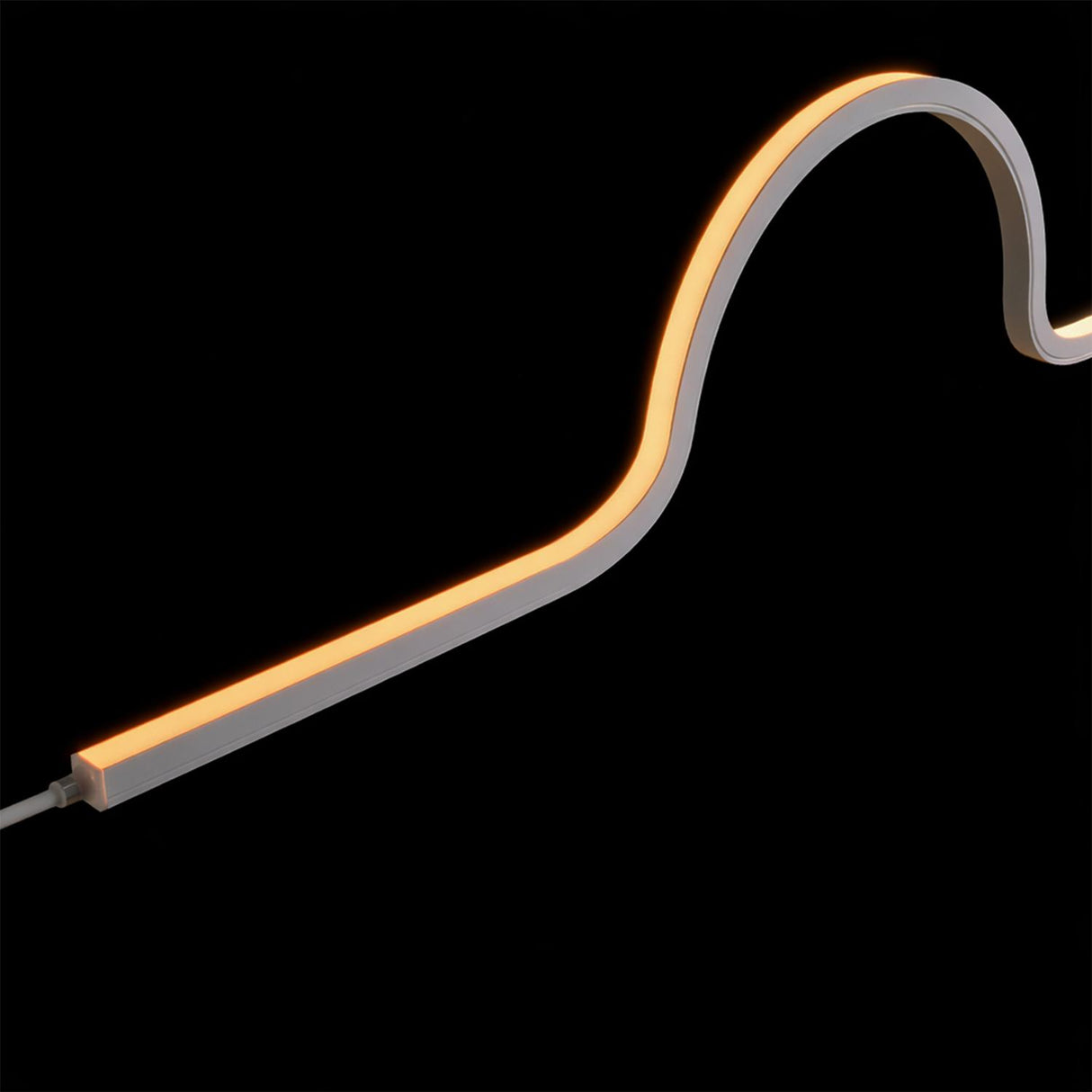

The Diode LED DI-24V-TE-LIN-WD3018-016 is a LINAIRE® Flex Top Bend Warm Dim Linear Light designed for architectural applications requiring smoothly dimmed, fully diffused illumination. As the light output is reduced, its color temperature transitions from 3000K to 1800K to replicate the familiar warm glow of incandescent lighting. The light engine produces up to 200 lumens per foot with a high 90+ CRI for accurate color rendering. Its flexible top-bending profile and dot-free illuminated surface make it suitable for coves, curved architectural details, hospitality spaces, restaurants, residential interiors, retail environments, and other applications where a warmer atmosphere is desired during dimming.

Operating from a 24V DC constant-voltage power source, this light engine consumes 4.3 watts per foot and supports a maximum continuous run of 16.4 feet. Smooth dimming is accomplished through a simple 2-wire installation when the light engine is paired with an appropriate compatible dimmable driver and control. The product features 2.81-inch cut points, a 5-inch minimum bend radius, and a compact profile measuring 0.63 in. wide × 0.63 in. high. It contains 36 LEDs per foot and is supplied with 96-inch white bare lead 18/2 AWG wire on both ends for convenient system connection.

The DI-24V-TE-LIN-WD3018-016 is UV stabilized and water resistant for indoor and outdoor architectural installations. It supports IP65 field connections and terminations as well as IP67 stock-spool and factory-assembled configurations. The light engine is UL Listed 2108, UL Listed as field cuttable, and approved for qualifying clothes-closet storage-area installations under applicable NEC requirements. Its operating temperature range extends from -4°F to 176°F, and the product is backed by a 5-Year Limited Warranty. Compatible field connectors, mounting channels, mounting clips, dead end caps, and Diode LED dimmable power supplies provide installation flexibility for custom warm-dim lighting systems.

Technical Performance Specifications
