DIODE LED DI-24V-VLX1-20-100 100ft 1W/ft Valent X 100+ Lumen Per Ft High Density LED Tape Light 2000K 24V DC

$2,475.00
Shipping calculated at checkout.
% BULK SAVINGS Applied at checkout
Spend $100+ 5% OFF
Spend $500+ 7% OFF
Spend $1000+ 10% OFF

Specifications & Downloads

Spec Sheet View Spec Sheet
Barcode: 848333036729

Description

Identification & Application

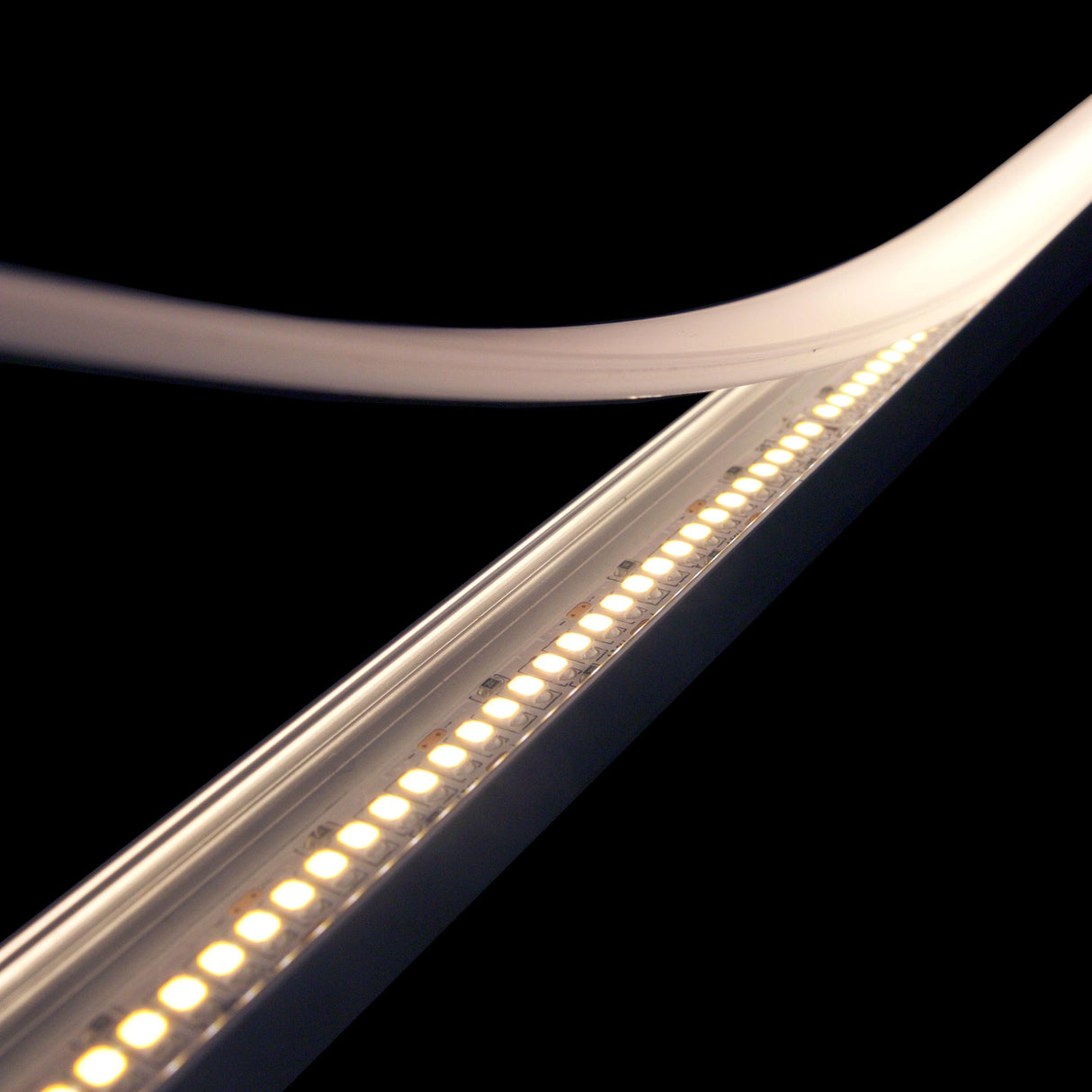

Diode LED DI-24V-VLX1-20-100 100ft 1W/ft Valent X 100+ Lumen Per Ft High Density LED Tape Light 2000K 24V DC

The Diode LED VALENT® X is a precision-engineered 24V high-density LED tape light for demanding linear lighting applications. It provides dense LED placement for uninterrupted linear light and high color quality.

This 2000K VLX1 configuration delivers 104 lm/ft. output while consuming 1W/ft. It features 95+ CRI with 90+ R9 color rendering, dimmable operation, and 1.32-inch cut points.

Supplied in a 100 ft. length, the tape operates from 24VDC, supports a maximum run length of 80 ft., and uses 72 LEDs/ft. with a 0.47 in. W × 0.10 in. H tape profile.

Technical Performance Specifications

Brand: Diode LED
Manufacturer Part Number (MPN): DI-24V-VLX1-20-100
Series: VALENT® X
Product Type: High Density LED Tape Light
Lighting Technology: LED
Length: 100 ft.
Input Voltage: 24VDC
Power Consumption: 1W/ft.
Color Temperature: 2000K
Lumens: 104 lm/ft.
CRI: 95+
Dimming: Yes
Maximum Run Length: 80 ft.
Cut Points: Every 1.32 in.
LED Density: 72 LEDs/ft.
LED Chip Type: 2835
Dimensions: 0.47 in. W × 0.10 in. H
Lead Wire: 36 in. Bare Lead 20/2 AWG UL 2464 Wire with Strain Relief
Rated Life: >50,000 Hours (TM-21 / LM-80)
Environment: Indoor / Damp Location (IP20)
Color Rendering: 95+ CRI / 90+ R9
Certifications: UL Listed 2108
Warranty: 12 Year Limited Warranty
Documentation: See manufacturer specification sheet.
