Diode LED DI-24V-VLX5-50-W100 100ft 4.6W/ft Valent X 500+ Lumen Per...
Description
Description
Identification & Application

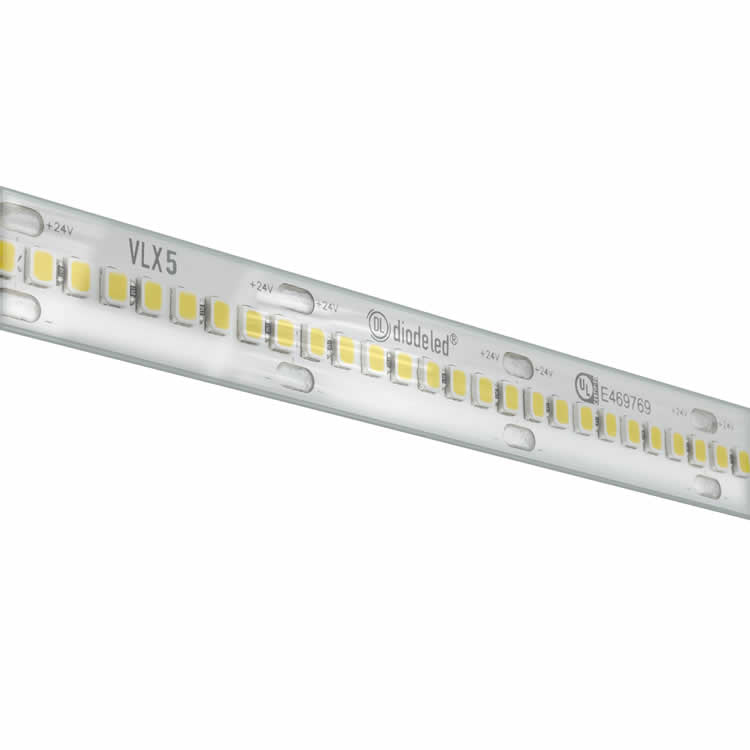

The Diode LED DI-24V-VLX5-50-W100 is a LED Tape Light designed for low-voltage linear lighting installations requiring consistent output and flexible field layout. This Valent X tape light operates on a 24VDC constant voltage system and is configured in the submitted title at 5000K. The 0.47 in. tape format supports installation in channels, cabinetry, shelving, coves, and architectural lighting features. The published performance for this configuration is 500+ lm/ft with 4.6W/ft consumption. It is intended for indoor and damp location use with the published IP20 environmental rating.
Technical Performance Specifications
- Brand: Diode LED
- SKU/MPN: DI-24V-VLX5-50-W100
- Product Type: LED Tape Light
- Installation Type: Surface Mount
- Electrical: 24VDC constant voltage input, 4.6W/ft, dimmable
- Optical: 5000K color temperature, 500+ lm/ft, CRI 95
- Mechanical: Valent X flexible LED tape light, 0.47 in. tape width
- Environmental: Indoor / Damp Location (IP20)
- Dimensions: 0.47 x 0.1 in. (W x H)
- Lifecycle: TM-21 (LM-80) >50,000 hr, max run 30 ft
- Additional Info: cut points 1.32 in., LED chips 72/ft, chip type 2835
- Warranty: 12 Year Limited
- Documentation: See manufacturer spec sheet for additional details
Application Guidance
Use this tape light where a compact linear source is required and match the connected driver to the published 24VDC load. Observe the 1.32 in. cut interval and the 30 ft maximum run limit when laying out the installation. The daylight white output is suited to application-specific ambient, display, task, or accent lighting. For best finish and thermal management, pair the tape with compatible mounting accessories or channel systems where appropriate.
