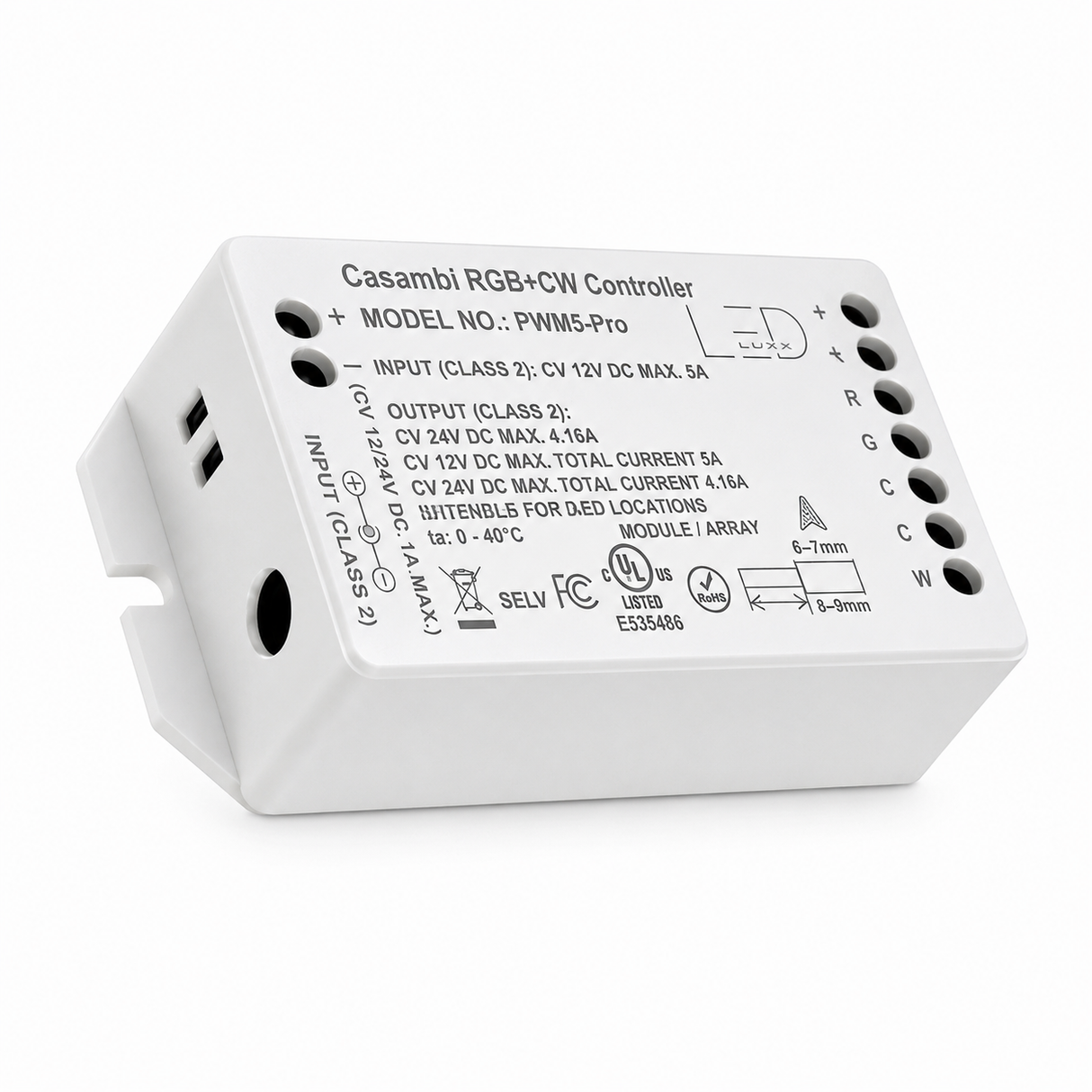

DIODE LED DI-CBU-PWM5-PRO Casambi CBU-PWM5-Pro RGB/W/WW Applications, 5 x PWM for constant voltage lights, 4 amps/CH max

Identification & Application

Diode LED DI-CBU-PWM5-PRO Casambi CBU-PWM5-Pro 5-Channel Bluetooth PWM Controller for Constant Voltage LED Lighting 12-24V DC

The Diode LED DI-CBU-PWM5-PRO is a professional-grade Casambi CBU-PWM5-Pro Bluetooth-enabled PWM controller designed for constant-voltage LED lighting systems. Featuring five independently controllable PWM output channels, this compact controller provides wireless dimming, scene control, scheduling, and automation directly through the Casambi mobile app without requiring an external gateway. It is ideal for architectural, residential, hospitality, retail, commercial, and entertainment lighting applications using constant-voltage LED tape lights and LED modules.

Operating from a 12-24V DC constant-voltage power supply, the controller supports a maximum output of 4 amps per channel (24V) with the available output current shared across all channels. It supports a wide range of lighting profiles including single color, Tunable White (CCT), RGB, RGBW, RGB+White, RGBTW, and RGBWA applications, allowing complete flexibility for dynamic lighting installations. Bluetooth mesh technology enables reliable wireless communication, simple commissioning, and intuitive control from compatible iOS and Android devices using the free Casambi app.

Designed for dependable long-term performance, the DI-CBU-PWM5-PRO features overload protection, flicker-free PWM dimming, an IP20 indoor rating, and a compact housing for remote installation inside fixtures, cabinets, or control enclosures. The controller is UL Listed and FCC certified, making it an excellent solution for advanced wireless LED lighting systems requiring professional performance and flexible multi-channel control.

Technical Performance Specifications
